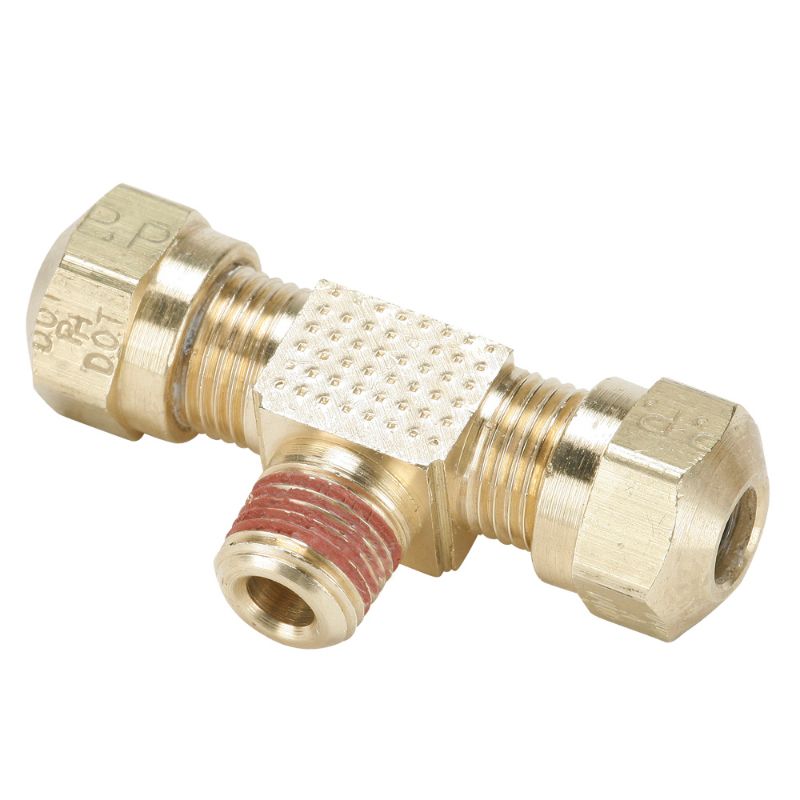

Parker VS272NTA-6-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: Parker VS272NTA-6-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: VS272NTA-6-4
Price: 18.12 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:

5 In Stock

Sumter, SC	3
Ashland, VA	2

Partner Available:

89 In Stock

Brand Parker

Part No. VS272NTA-6-4

$18.12

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Nut Material	Brass
Dimensional Weight	0.27594424460431655 lb	Application	Air Brake, Accessories
Sleeve Material	Brass	Tube Material	SAE J844 Type A & B Nylon Tubing
Maximum Operating Pressure	150 psi	Maximum Operating Temperature	200 °F
Thread Sealant Material	Vibra-Seal 516	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246
Minimum Operating Temperature	-40 °C	Body Material	Brass
Division	Fluid System Connectors Division	Connection 3 Thread Size (inch)	na
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 2 Style	Male Pipe	Connection 2 Thread Size (inch)	1/4
Connection 1 Tube O.D. (inch)	3/8	Shape	Branch Tee
Connection 3 Style	na	Style	Tube to Pipe
