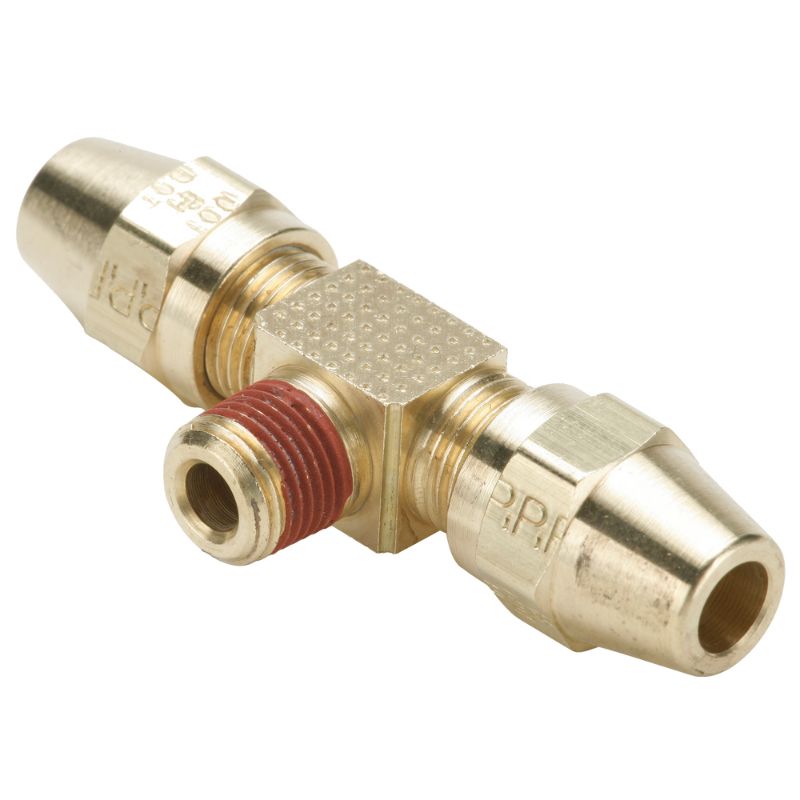

Parker VS272AB-6-4 - Air Brake D.O.T. compression style fittings, AB

Name: Parker VS272AB-6-4 - Air Brake D.O.T. compression style fittings, AB
SKU: VS272AB-6-4
Price: 19.34 USD
Availability: LimitedAvailability

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Availability:

1 Limited Stock

Richmond, VA

Partner Available:

9 In Stock

Brand Parker

Part No. VS272AB-6-4

$19.34

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Sleeve Material	Brass
Minimum Operating Temperature	-65 °F	Specifications Met	DOT FMVSS 571.106, SAE J246
Application	Air Brake	Tube Material	Annealed Copper
Thread Sealant Material	Vibra-Seal 516	Maximum Operating Pressure	27 bar
Body Material	Brass	Maximum Operating Temperature	250 °F
Division	Fluid System Connectors Division	Nut Material	Brass
Connection 2 Style	Male Pipe	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 2 Thread Size (inch)	1/4
Connection 1 Tube O.D. (inch)	3/8	Shape	Branch Tee
Style	Tube to Pipe
