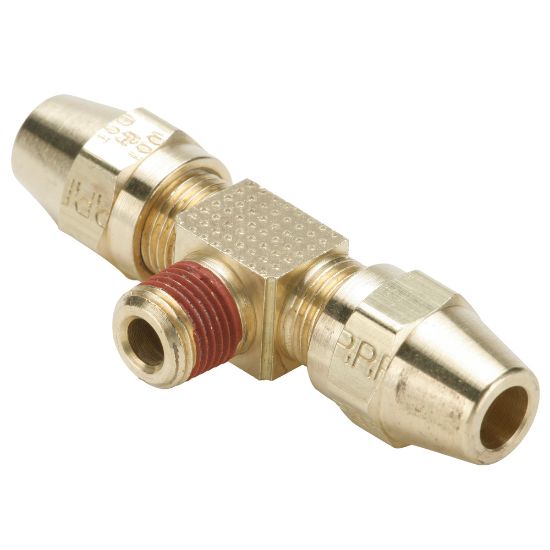

Parker VS272AB-4-2 - Air Brake D.O.T. compression style fittings, AB

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VS272AB-4-2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Nut Material	Brass	Minimum Operating Temperature	-53 °C
Sleeve Material	Brass	Specifications Met	DOT FMVSS 571.106, SAE J246
Application	Air Brake	Tube Material	Annealed Copper
Thread Sealant Material	Vibra-Seal 516	Maximum Operating Pressure	27 bar
Body Material	Brass	Division	Fluid System Connectors Division
Maximum Operating Temperature	250 °F	Connection 2 Tube O.D. (inch)	na
Connection 2 Style	Male Pipe	Connection 2 Thread Size (inch)	1/8
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Style	Tube to Pipe	Shape	Branch Tee
