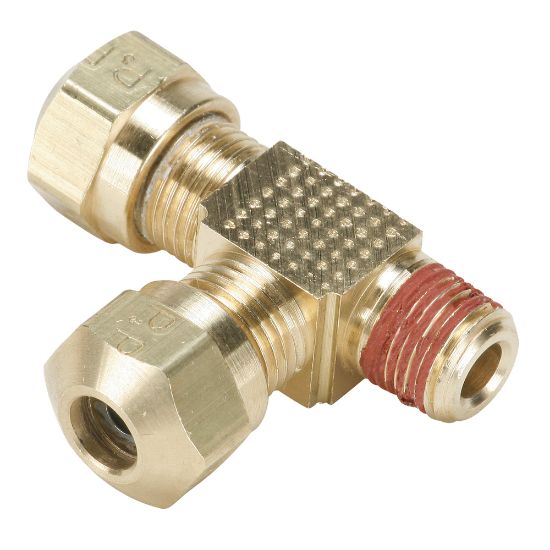

Parker VS271NTA-6-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: Parker VS271NTA-6-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: VS271NTA-6-4
Price: 18.06 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:

8 In Stock

Richmond, VA	6
Ashland, VA	2

Partner Available:

169 In Stock

Brand Parker

Part No. VS271NTA-6-4

$18.06

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	10 bar
Tube Material	Stainless Steel	Application	Air Brake, Accessories
Body Material	Brass	Minimum Operating Temperature	-40 °C
Dimensional Weight	0.27594424460431655 lb	Nut Material	Brass
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Sleeve Material	Brass
Maximum Operating Temperature	200 °F	Division	Fluid System Connectors Division
Thread Sealant Material	Vibra-Seal 516	Connection 1 Tube O.D. (inch)	3/8
Shape	Run Tee	Connection 2 Style	Male Pipe
Connection 2 Tube O.D. (inch)	na	Connection 3 Thread Size (inch)	na
Connection 2 Thread Size (inch)	1/4	Connection 1 Style	Compression
Connection 3 Style	na	Style	Tube to Pipe
