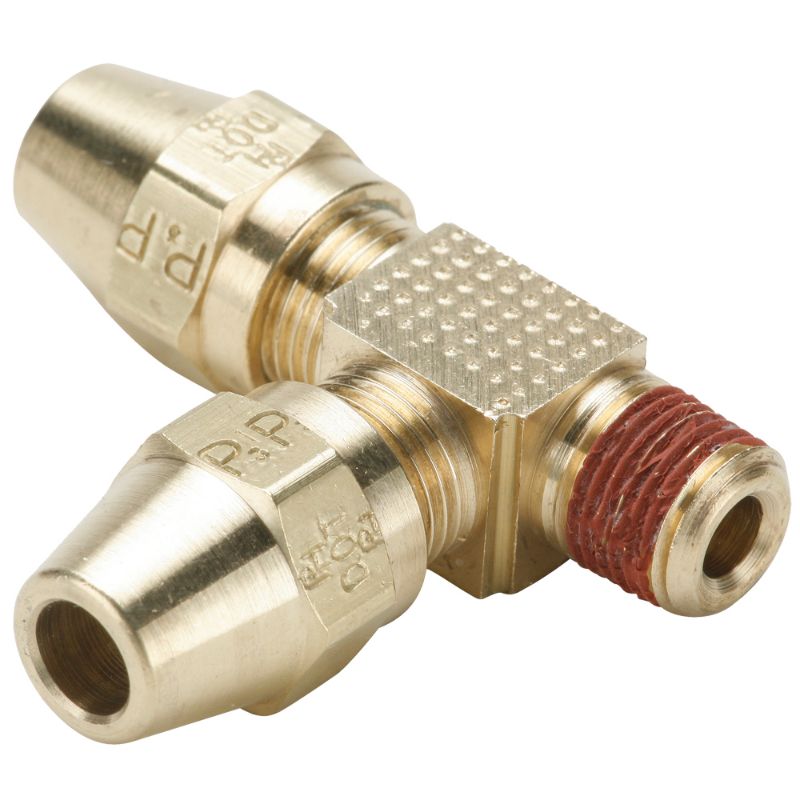

Parker VS271AB-4-4 - Air Brake D.O.T. compression style fittings, AB

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

AFP Availability:	Quote Required
Partner Available:	40 In Stock

Brand Parker

Part No. VS271AB-4-4

$40.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	400 psi
Tube Material	Annealed Copper	Division	Fluid System Connectors Division
Maximum Operating Temperature	121 °C	Thread Sealant Material	Vibra-Seal 516
Nut Material	Brass	Body Material	Brass
Sleeve Material	Brass	Specifications Met	DOT FMVSS 571.106, SAE J246
Minimum Operating Temperature	-65 °F	Application	Air Brake
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Thread Size (inch)	1/4
Style	Tube to Pipe	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Shape	Run Tee
Connection 2 Style	Male Pipe
