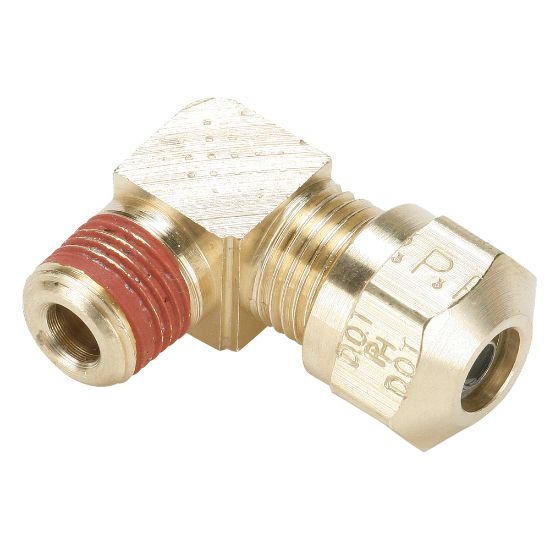

Parker VS269NTA-3-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: Parker VS269NTA-3-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: VS269NTA-3-4
Price: 21.97 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:

5 In Stock

Knoxville, TN

Partner Available:

34 In Stock

Brand Parker

Part No. VS269NTA-3-4

$21.97

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Nut Material	Brass
Application	Air Brake, Accessories	Sleeve Material	Brass
Tube Material	SAE J844 Type A & B Nylon Tubing	Maximum Operating Pressure	150 psi
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Minimum Operating Temperature	-40 °F
Thread Sealant Material	Vibra-Seal 516	Division	Fluid System Connectors Division
Body Material	Brass	Maximum Operating Temperature	200 °F
Connection 2 Tube O.D. (inch)	na	Connection 3 Thread Size (inch)	na
Shape	90° Elbow	Connection 1 Tube O.D. (inch)	3/16
Connection 1 Style	Compression	Connection 2 Style	Male Pipe
Connection 2 Thread Size (inch)	1/4	Connection 3 Style	na
Style	Tube to Pipe
