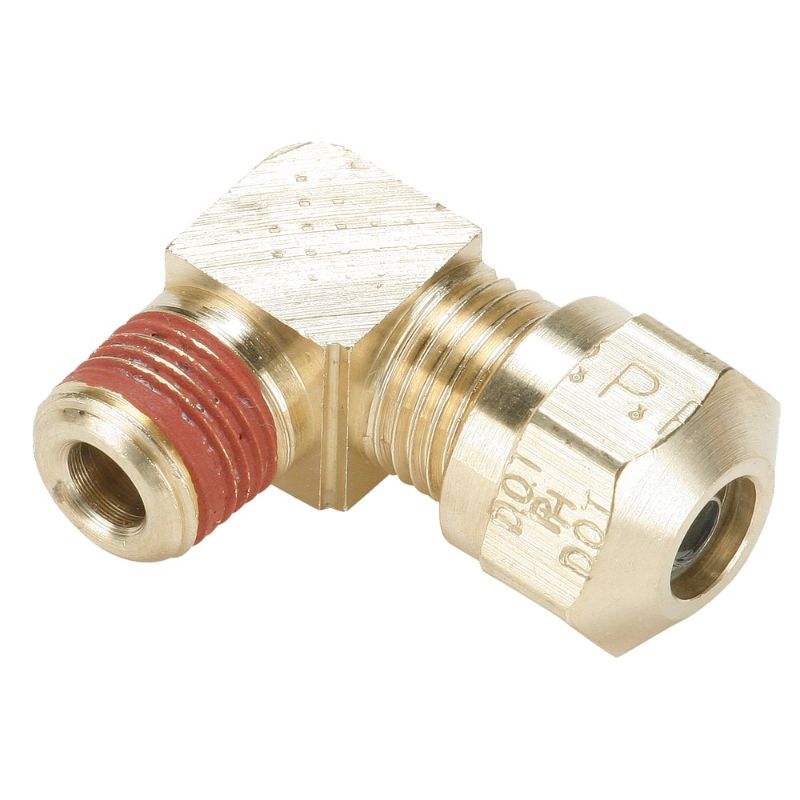

Picture of Parker VS269NTA-3-2 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker VS269NTA-3-2 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.
Availability:
Quote Required
Partner Available:60 In Stock
Brand Parker
Part No. VS269NTA-3-2
$19.47
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionFluid System Connectors Division
Thread Sealant MaterialVibra-Seal 516Specifications MetDOT FMVSS 571.106, SAE J1131, SAE J246
Maximum Operating Pressure10 barTube MaterialStainless Steel
ApplicationAir Brake, AccessoriesMinimum Operating Temperature-40 °C
Body MaterialBrassNut MaterialBrass
Sleeve MaterialBrassMaximum Operating Temperature93 °C
Connection 3 StylenaConnection 2 Thread Size (inch)1/8
StyleTube to PipeConnection 2 StyleMale Pipe
Connection 2 Tube O.D. (inch)naShape90° Elbow
Connection 1 Tube O.D. (inch)3/16Connection 3 Thread Size (inch)na
Connection 1 StyleCompression
California Residents: Prop-65 Warning
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials
