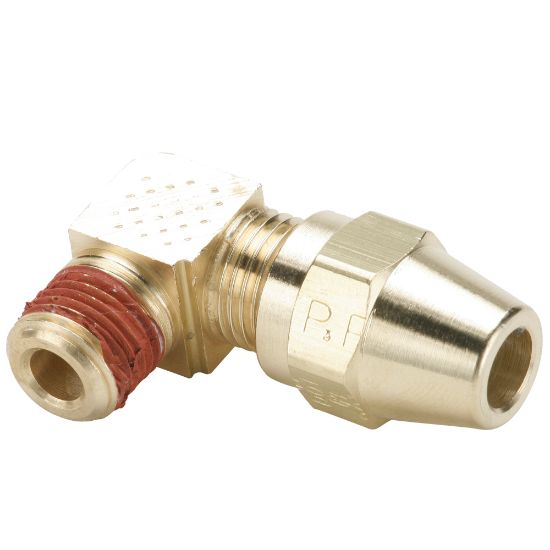

Parker VS269AB-12-12 - Air Brake D.O.T. compression style fittings, AB

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VS269AB-12-12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Thread Sealant Material	Vibra-Seal 516	Tube Material	Annealed Copper
Sleeve Material	Brass	Body Material	Brass
Division	Fluid System Connectors Division	Minimum Operating Temperature	-53 °C
Maximum Operating Pressure	400 psi	Application	Air Brake
Maximum Operating Temperature	121 °C	Specifications Met	DOT FMVSS 571.106, SAE J246
Nut Material	Brass	Connection 1 Tube O.D. (inch)	3/4
Connection 1 Style	Compression	Connection 2 Thread Size (inch)	3/4
Style	Tube to Pipe	Connection 2 Style	Male Pipe
Connection 2 Tube O.D. (inch)	na	Shape	90° Elbow
