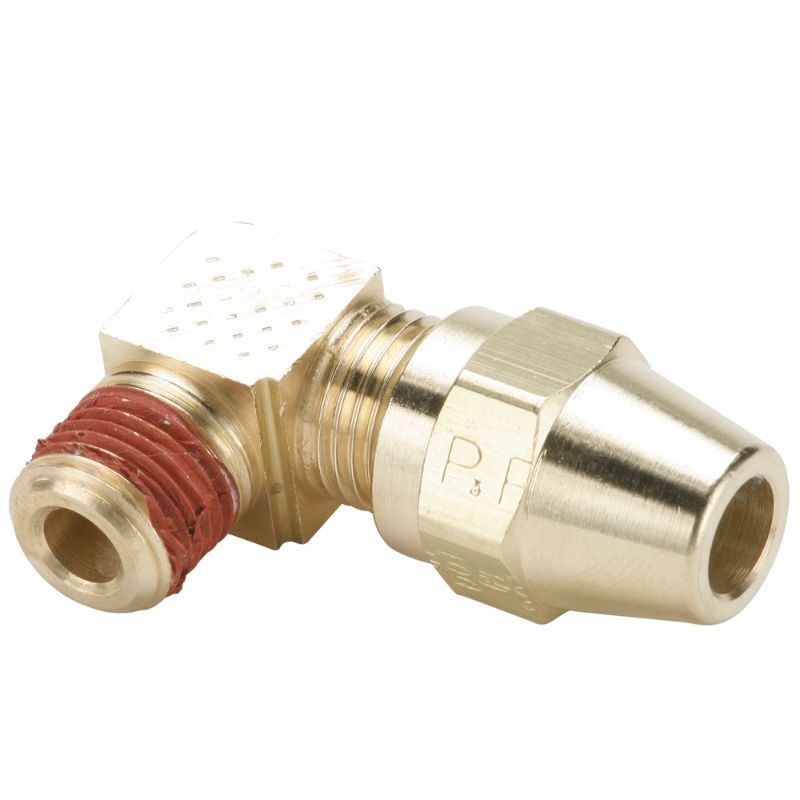

Parker VS269AB-10-8 - Air Brake D.O.T. compression style fittings, AB

Name: Parker VS269AB-10-8 - Air Brake D.O.T. compression style fittings, AB
SKU: VS269AB-10-8
Price: 30.84 USD
Availability: LimitedAvailability

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Availability:

1 Limited Stock

Richmond, VA

Partner Available:

22 In Stock

Brand Parker

Part No. VS269AB-10-8

$30.84

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Nut Material	Brass
Specifications Met	DOT FMVSS 571.106, SAE J246	Sleeve Material	Brass
Application	Air Brake	Tube Material	Annealed Copper
Thread Sealant Material	Vibra-Seal 516	Maximum Operating Pressure	27 bar
Minimum Operating Temperature	-53 °C	Body Material	Brass
Maximum Operating Temperature	250 °F	Division	Fluid System Connectors Division
Shape	90° Elbow	Connection 2 Thread Size (inch)	1/2
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 2 Style	Male Pipe	Connection 1 Tube O.D. (inch)	5/8
Style	Tube to Pipe
