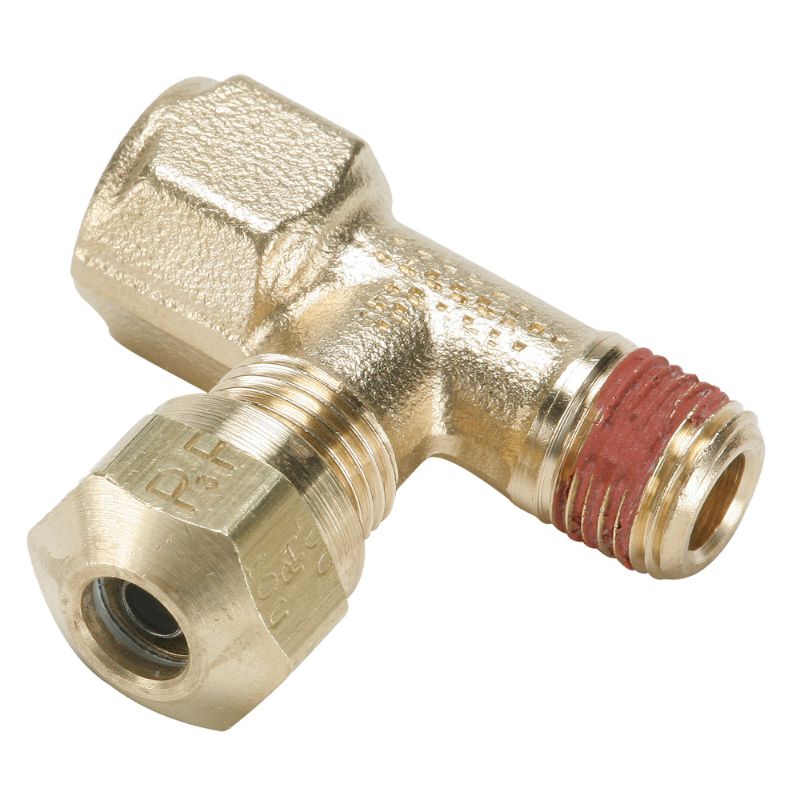

Parker VS176NTA-4-2 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. VS176NTA-4-2

$55.08

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Maximum Operating Temperature	200 °F	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246
Minimum Operating Temperature	-40 °F	Thread Sealant Material	Vibra-Seal 516
Maximum Operating Pressure	10 bar	Tube Material	Stainless Steel
Body Material	Brass	Nut Material	Brass
Application	Air Brake, Accessories	Sleeve Material	Brass
Shape	Adapter Tee	Connection 2 Thread Size (inch)	1/8
Connection 3 Style	Female Pipe	Style	Tube to Pipe
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 3 Thread Size (inch)	1/8	Connection 1 Tube O.D. (inch)	1/4
Connection 2 Style	Male Pipe
