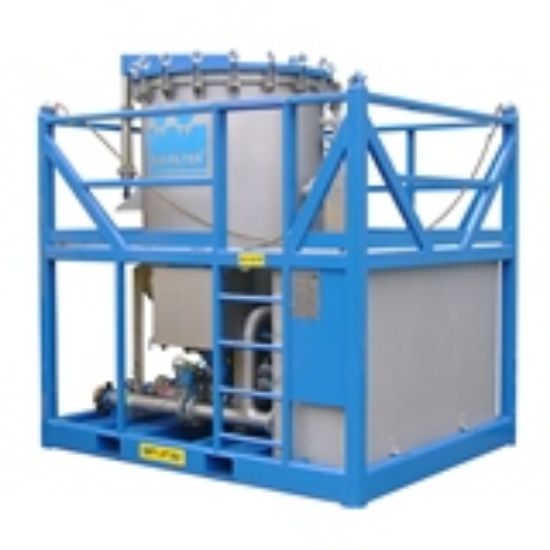

Parker VPL600 - Vertical Pressure Leaf DE Filter Unit

The Vertical Pressure Leaf Diatomaceous Earth Filter Unit is self-contained and equipped with all necessary auxiliaries to perform effective filtration results.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VPL600

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Width	7.2	Vessel Size	51.2
Operating Features	Central pneumatic control panel; all main valves are operated by pneumatic actuators.<br/>In/Outlet pressure gauge.<br/>Pressure relief valve.<br/>Flow indicator.<br/>Air operated diaphragm pump for precoating and bodyfeed.	Valve Type	4" BFV air operated from control board.
Length	9.2	Wetted Material	'SS 316L
Industry Application	Service Company	Division	Industrial Process Filtration Division
Maximum Operating Temperature	'158°F (70°C)	Height	9.7
Connection Size	7 inch Union Fig. 100	Brand	Twin Filter
Maximum Flow Rate	'15 bbl/min (145 m3/hr)	Maximum Operating Pressure	101.5
Equipment Type	Filtration	Weight	9500 lb (Empty)
Materials of Construction	Frame: Carbon Steel (Powder Coated RAL 5015 others on request)	Filter Area ft2/m2	600 ft2 / 56 m2
