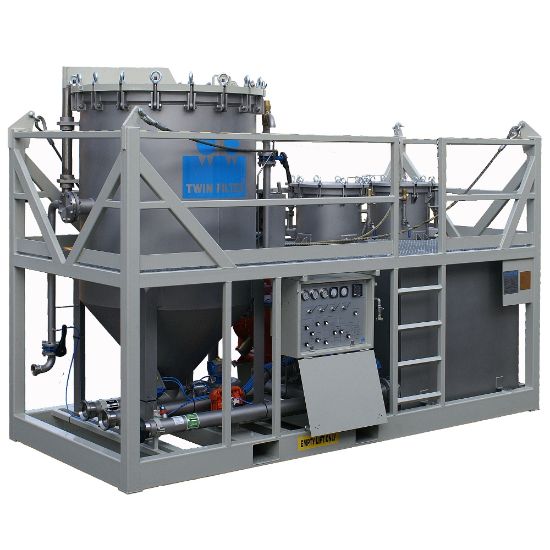

Picture of Parker VPL420-C - Combination Filter Unit Vertical Pressure Leaf and Dual Vessel Filter Unit

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker VPL420-C - Combination Filter Unit Vertical Pressure Leaf and Dual Vessel Filter Unit

This vertical pressure leaf combination unit has an integrated dual vessel filter unit to save floor space. Furthermore no separate hook-up of the dual vessel filter unit is required.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. VPL420-C
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Length13Materials of ConstructionFrame: Carbon Steel (Powder Coated RAL 5015 others on request)
DivisionIndustrial Process Filtration DivisionVessel SizeVPL 43.3 inch (100 mm)<br/>
Connection Size7 inch Union Fig. 100BrandTwin Filter
Maximum Operating Temperature158.0Valve Type'4" BFV air operated from control board.
Wetted MaterialVessel : SS 316L<br/>Filter Leaves: SS 316L with polypropylene filter cloth<br/>Product TypeFiltration
Maximum Operating Pressure101.5Maximum Flow Rate12 Bbl/min
Industry ApplicationService CompanyHeight9.6
Operating FeaturesCentral pneumatic control panel; all main valves are operated by pneumatic actuators.<br/>In/Outlet pressure gauge.<br/>Pressure relief valve.<br/>Flow indicator.<br/>Air operated diaphragm pump for precoating and bodyfeed.Weight9920 lb (Empty)
Width6.6Filter Area ft2/m2420 ft2 / 39 m2
