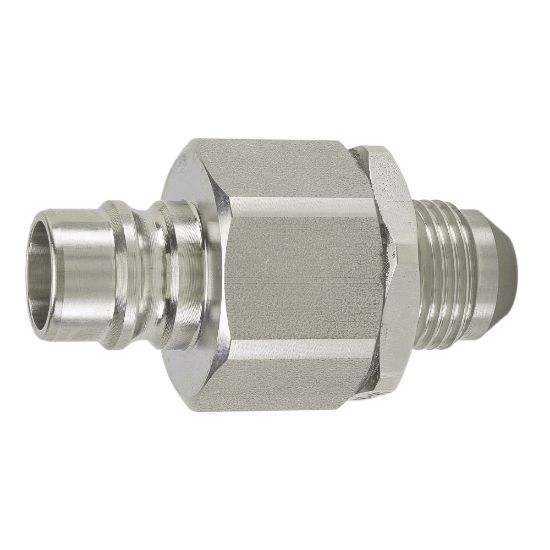

Parker VPHN8-8EM - Connect Under Pressure, Multi-Purpose Quick Couplings - PH Series

Parker's general purpose connect under pressure quick couplers and nipples are versatile for use across a spectrum of applications where fluid lines require fast and easy connection and disconnection while under residual pressure

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VPHN8-8EM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	4000 psi	Hex Size	1.19 inch
Application	Hydraulic, General Purpose	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Body Material	Steel
Plating Type	Zinc with clear trivalent chromate	Product Type	Manual Connect
Valve Type	Poppet	Coupling Half	Male Nipple
Body Size (inch)	1/2	Connection Type	Male SAE 37 degree flare
Connection Thread Size (inch)	3/4 - 16
