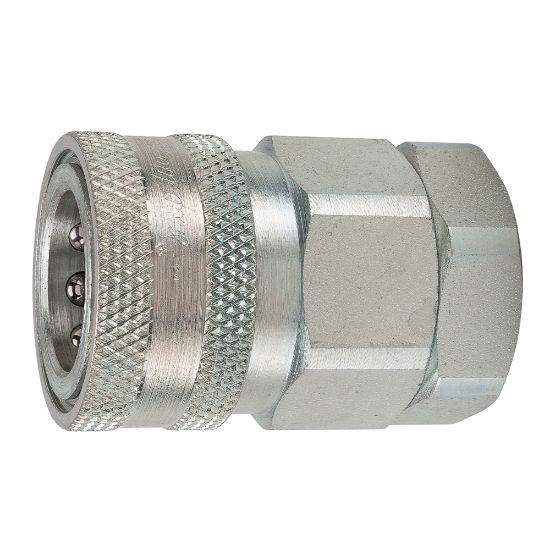

Parker VPHC8-8F - Connect Under Pressure, Multi-Purpose Quick Couplings - PH Series

Parker's general purpose connect under pressure quick couplers and nipples are versatile for use across a spectrum of applications where fluid lines require fast and easy connection and disconnection while under residual pressure

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VPHC8-8F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Valve Type	Poppet	Application	Hydraulics
Product Type	Manual Connect	Division	Quick Coupling Division
Hex Size	1.19 inch	Dimensional Weight	0.2670863309352518 lb
Maximum Operating Pressure	4000 psi	Plating Type	Zinc with clear trivalent chromate
Body Material	Steel	Minimum Operating Temperature	-40 °F
Coupling Half	Female Coupler	Connection Thread Size (inch)	1/2 - 14
Connection Type	Female NPTF	Body Size (inch)	1/2
