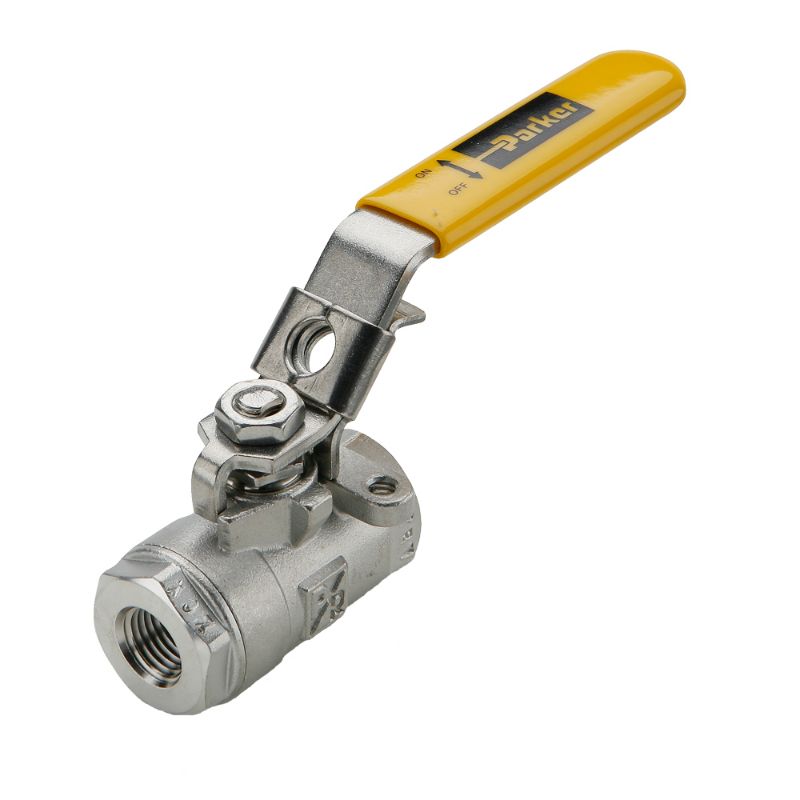

Picture of Parker VP502SS-12* - Transair® Valves for Stainless Steel Pipe

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker VP502SS-12* - Transair® Valves for Stainless Steel Pipe

Transair Valves are designed for quick and easy integration into a Transair stainless steel system. Placing valves at strategic points allows for easy localized isolation.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. VP502SS-12*
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Operating Pressure145Assembly Time0.10
Weight2.78Vacuum Pressure Rating1
Minimum Operating Temperature-4Seal MaterialPTFE
DivisionFluid System Connectors DivisionConnection 2 TypeFemale NPT
BrandTransairMaximum Operating Temperature194
ApplicationVacuumQuantity per Box5.0
Connection 1 Size3/4Connection 1 TypeFemale NPT
Connection 2 Size3/4ConfigurationPort to Port
Product TypeBall ValveDivisionLow Pressure Connectors Europe Division
Body MaterialStainless SteelStyleBall Valve
Pipe O.D. (mm)N/ASeal MaterialPTFE
Pipe O.D. (inch)N/ABody MaterialStainless Steel
Connection Thread Size (inch)3/4
