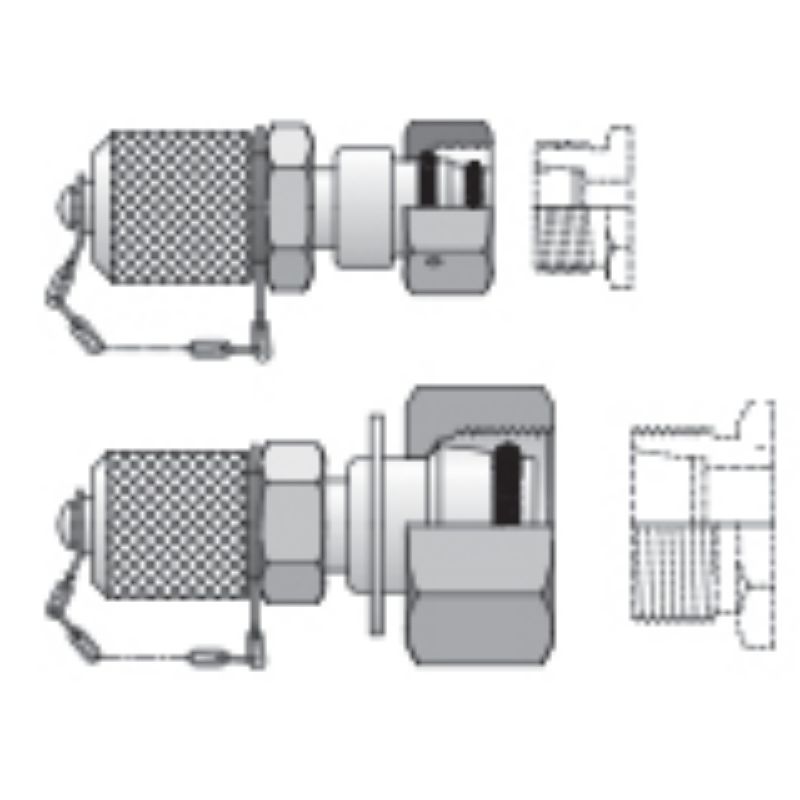

Parker VKA3/08SCF - In-Line Diagnostic Fittings and Adapters

Name: Parker VKA3/08SCF - In-Line Diagnostic Fittings and Adapters
SKU: VKA3/08SCF
Price: 50.53 USD
Availability: InStock

Parker's Diagnostic products are designed to be installed to a hose assembly or tube line without the need to displace the port adapter, working in conjunction with electronic diagnostic products and mechanical pressure and temperature sensing equipment.

AFP Availability:

13 In Stock

North Chesterfield, VA	6
Summerville, SC	3
Ashland, VA	1 (Pickup only)
West Knoxville, TN	1
Johnson City, TN	1 (Pickup only)
East Knoxville, TN	1

Partner Available:

4 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. VKA3/08SCF

$50.53/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Connection Type	EO Diagnostic Swivels	Body Material	Steel
Maximum Static Pressure	10100 psi	Maximum Dynamic Pressure	9100 psi
Connection 2 Tube O.D. (mm)	na	Connection 3 Style	na
Connection 1 Tube O.D. (inch)	na	Connection 2 Thread Size (mm)	M16X2
Connection 1 Style	Male 24° Metric Flareless Swivel	Connection 1 Tube O.D. (mm)	8S
Connection 3 Thread Size (inch)	na	Connection 3 Thread Size (mm)	na
Connection 2 Thread Size (inch)	na	Body Material	Steel
Connection 2 Style	M16 Test Point Connector	O-Ring Material	NBR
Connection 2 Tube O.D. (inch)	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
