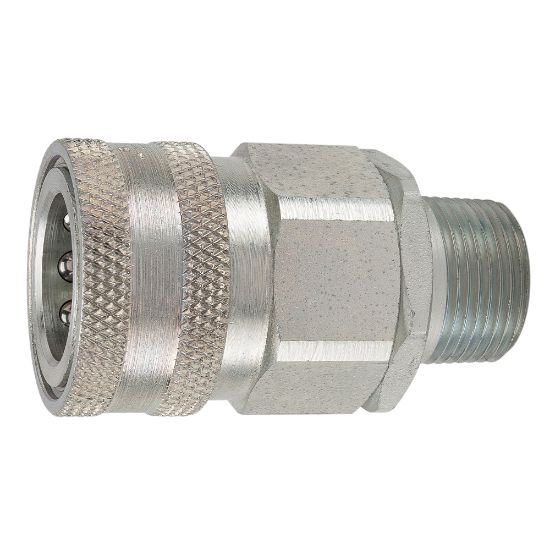

Parker VHC8-8M - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VHC8-8M

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.05341726618705036 lb	Plating Type	Zinc with clear trivalent chromate
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	250 °F
Seal Material	Nitrile	Valve Type	Poppet
Product Type	Manual Connect	Application	Hydraulics
Division	Quick Coupling Division	Hex Size	1.19 inch
Body Material	Steel	Body Size (inch)	1/2
Connection Type	Male NPT	Body Material	Steel
Coupling Half	Female Coupler	Connection Thread Size (inch)	1/2 - 14
Maximum Operating Pressure	4000	Valve Type	Poppet

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
