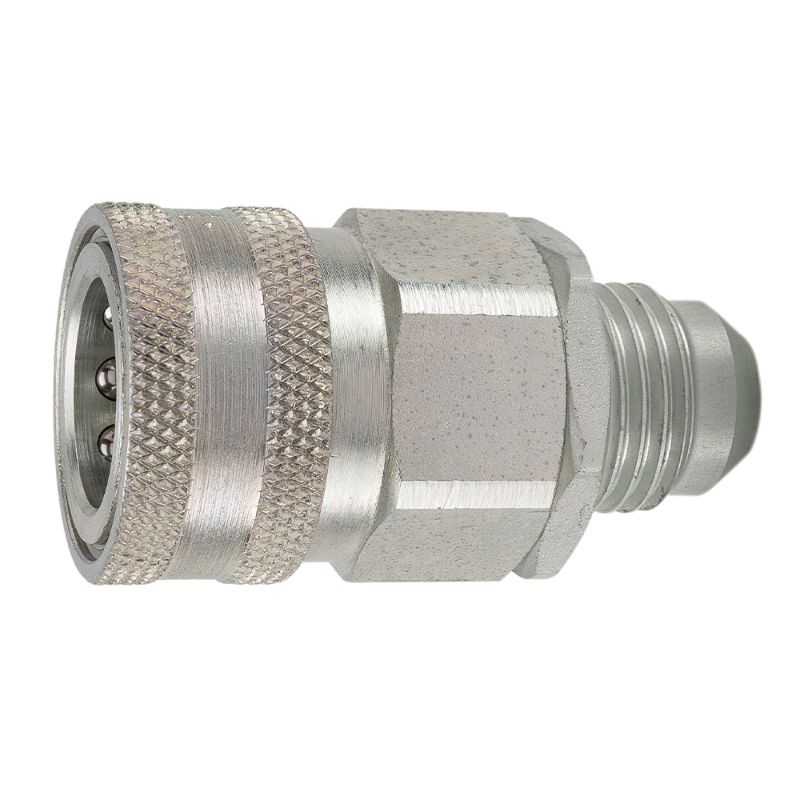

Parker VHC6-6EM - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. VHC6-6EM

$48.04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Plating Type	Zinc with clear trivalent chromate	Maximum Operating Temperature	250 °F
Hex Size	1.00 inch	Product Type	Manual Connect
Valve Type	Poppet	Application	Hydraulic, General Purpose
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Body Material	Steel	Body Size (inch)	3/8
Connection Thread Size (inch)	9/16 - 18	Maximum Operating Pressure	4500
Body Material	Steel	Valve Type	Poppet
Coupling Half	Female Coupler	Connection Type	Male SAE 37 degree flare
