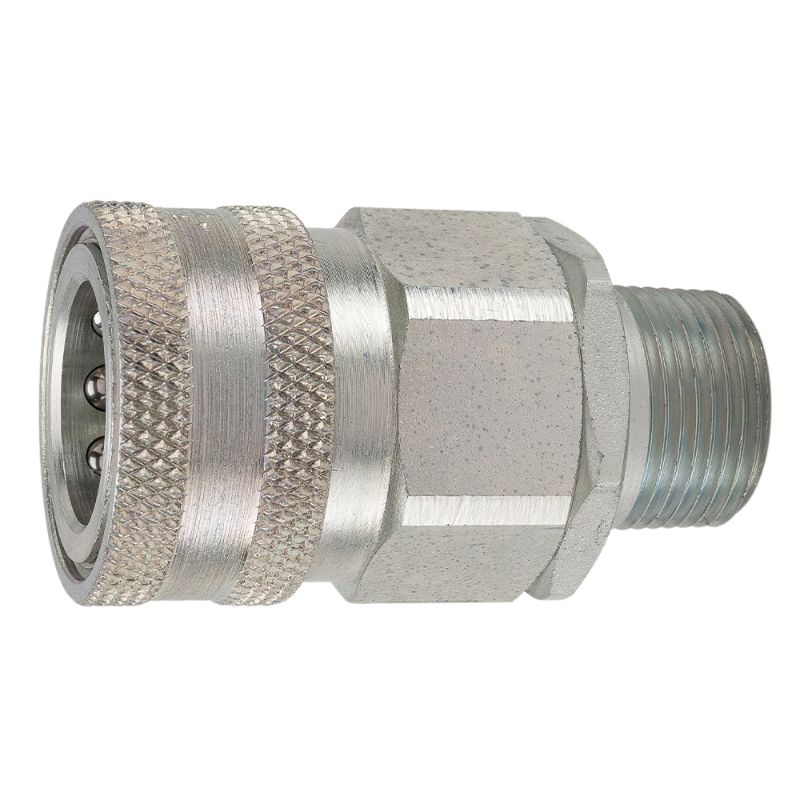

Parker VHC4-4MSL - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VHC4-4MSL

$37.26/each

Products specifications

Attribute name	Attribute value
UOM	EA	Hex Size	0.88 inch
Maximum Operating Temperature	250 °F	Application	Hydraulics
Plating Type	Zinc with Clear Trivalent Chromate	Product Type	Manual Connect
Minimum Operating Temperature	-40 °F	Body Material	Steel
Seal Material	Nitrile	Valve Type	Poppet
Division	Quick Coupling Division	Body Material	Steel
Connection Thread Size (inch)	1/4 - 18	Maximum Operating Pressure	6500
Valve Type	Poppet	Coupling Half	Female Coupler
Connection Type	Male NPT	Body Size (inch)	1/4

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
