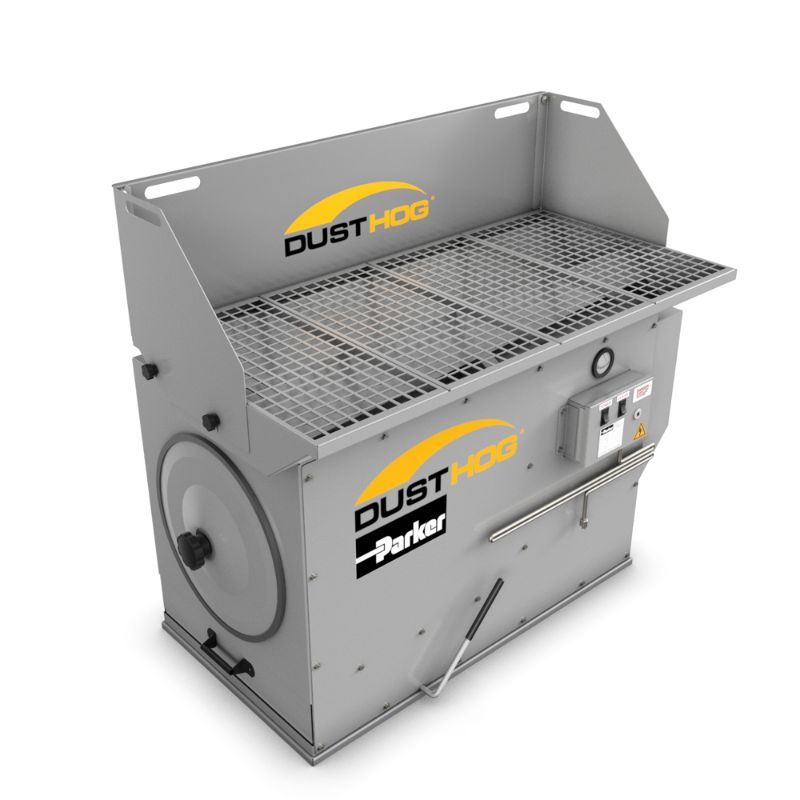

Parker VB-1500-C23USH - VB-1500 Downdraft Dust Collector

A source capture downdraft dust collector with an integrated open metal grate benchtop to remove dust, fumes or particles. Simply apply input power, a compressed air source and press start. Filter cartridge and accessories ordered separately.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VB-1500-C23USH

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Sound Level	77	Width	52-34/
Brand	DustHog	Filter Area	26.0
Filter Material	Media	Filter Included	No
Inlet Port Size	Metal Tabletop Work Grid	Color	Hog Gray
Motor Power Output Rating	3	Product Series	VB 1500
Weight	485	Options	Sold seperately: Filter media, After Filter, Wheels
Application	Dust, Fume, Smoke	Body Material	Mild Steel
Current	8.1 amp	Air Consumption	1.3
Air Flow Rate	1500	Paint Type	Powder Coated
Division	Industrial Gas Filtration and Generation Division	Height	46-13/16
Equipment Type	Downdraft Media Filter Unit	Depth	30-1/4
Input Power	208V/3P/60H
