*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

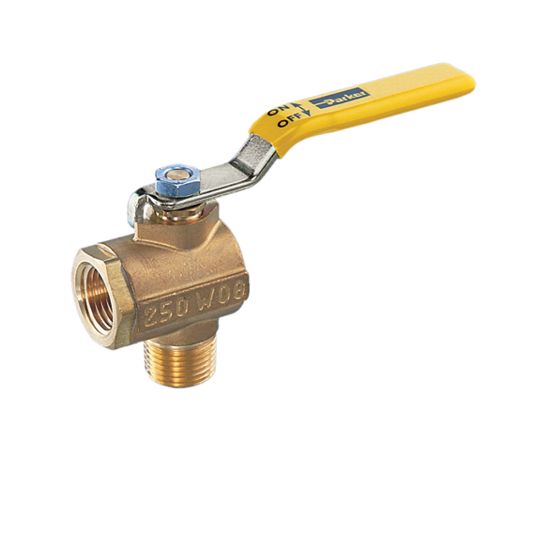

Parker V591P6 - Low Pressure Ball Valves - V500 Series

Note: This product is no longer available - please refer to the “Related Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V591P6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Body Material	Brass
Maximum Operating Pressure	250	Seal Material	PTFE
Division	Hydraulic Valve Systems Division	Vented	n/a
Minimum Operating Temperature	-4	Handle Type	Standard Handle
Actuation Type	Lever	Maximum Flow Rate	5.7
Media	Air, Oil, Water	Ball Material	Chrome Plated Brass
Maximum Operating Temperature	+350	Stem Material	Chrome Plated Brass
Connection Type	Male-Male	Port Size	3/8"
Maximum Flow Rate	5.7 cv	Mounting	90°
Minimum Operating Pressure	250 PSI

Product resources

Compliance, Certifications & Safety

Hydraulic Valve Division Safety Guide (PDF)

Literature and Reference Materials
