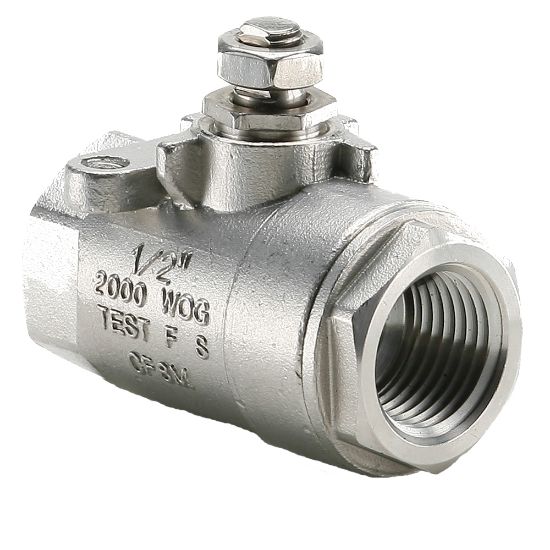

Parker V502SS-6-SUB - Industrial Ball Valves - Stainless Steel

Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V502SS-6-SUB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	6	Division	Fluid System Connectors Division
Vacuum Pressure Rating	28	Minimum Operating Temperature	0
Seal Material	PTFE	Connection Type	NPT
Maximum Operating Temperature	400	Connection Size	3/8
Function	2-Way	Actuation Type	Manual
Seat Material	PTFE	Maximum Operating Pressure	2000
Handle Type	n/a	Operation Type	n/a
Orifice Size	.38	Mounting Type	Panel
Body Material	CF-8M Stainless Steel	Shape	Panel Mount
Ball Material	PTFE	Specifications Met	NACE MR-01-75
Product Type	Ball Valve Sub Assembly	Configuration	Female NPT
Connection 2 Thread Size (inch)	3/8	Connection 1 Thread Size (inch)	3/8
Locking Mechanism	Non-Locking	Style	Female Pipe Ends
Connection 1 Thread Style	Female Pipe	Connection 2 Thread Style	Female Pipe
Shape	Panel mount	Handle	na
