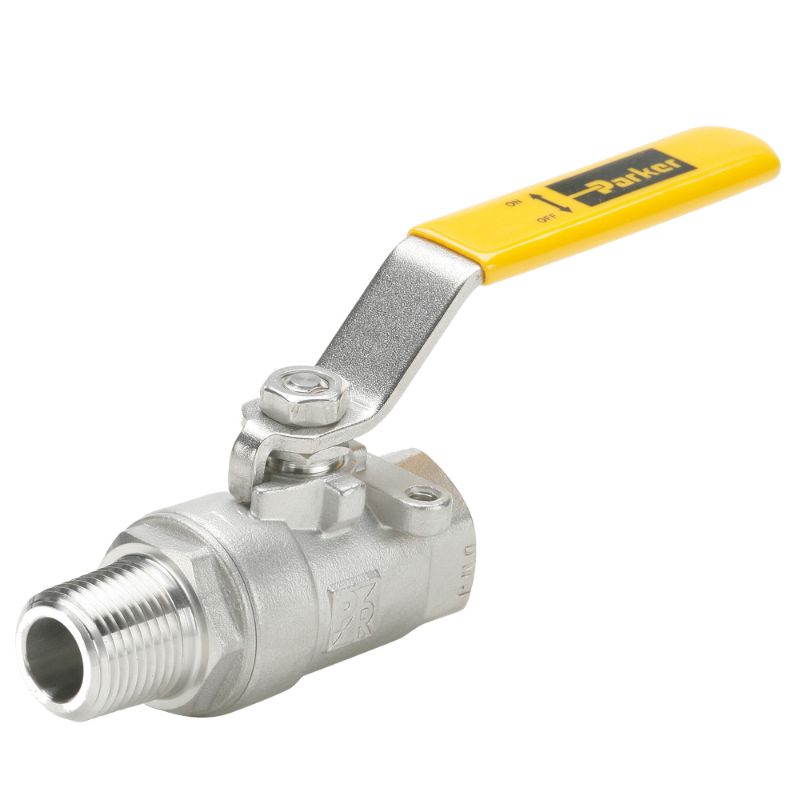

Parker V501SS-16 - Industrial Ball Valves - Stainless Steel

Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V501SS-16

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Vacuum Pressure Rating	28
Minimum Operating Temperature	0	Connection Type	NPT
Maximum Operating Temperature	400	Maximum Operating Pressure	2000
Handle Type	Lever	Seat Material	Stainless Steel
Mounting Type	Panel	Body Material	CF-8M Stainless Steel
Shape	0.38	Function	1.00
Orifice Size	.94	Product Type	2.00
Ball Material	PTFE	Configuration	0.787
Seal Material	0.38	Actuation Type	0.50
Operation Type	1.50	Connection Size	0.787
Maximum Flow Rate	1.25	Specifications Met	NACE MR-01-75
Locking Mechanism	Non-Locking	Connection 2 Thread Style	Female Pipe
Style	Male to Female Pipe Ends	Connection 1 Thread Style	Male Pipe
Shape	Panel mount	Connection 1 Thread Size (inch)	1
Connection 2 Thread Size (inch)	1	Handle	Stainless Steel Lever
