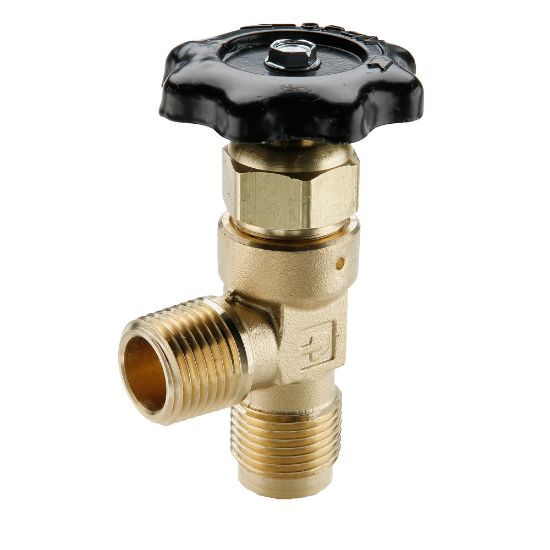

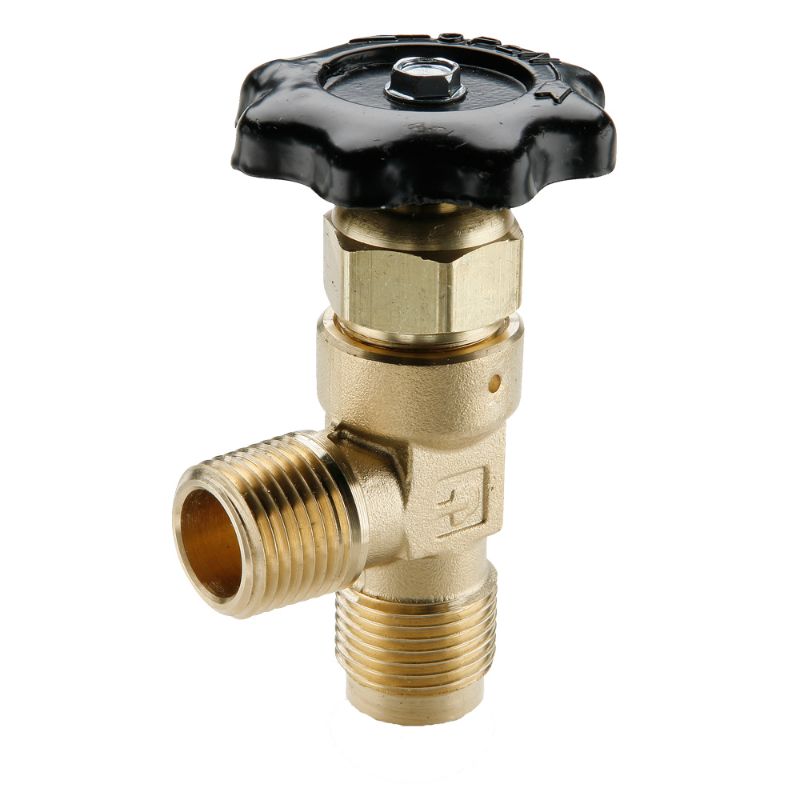

Parker V412F-10-8 - Truck Valves

Parker's truck valves are a robust, all brass construction with metal-to-metal seats for high heat/fluid compatibility.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V412F-10-8

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Stem Material	Brass	Maximum Operating Pressure	150 psi
Dimensional Weight	0.5518884892086331 lb	Minimum Operating Temperature	-34 °C
Division	Fluid System Connectors Division	Body Material	Brass
Maximum Operating Temperature	250 °F	Handle	Round
Connection 1 Hose I.D. (inch)	na	Connection 2 Style	Male Pipe
Connection 1 Thread Size (inch)	na	Connection 1 Style	Male Flare
Connection 1 Tube O.D. (inch)	5/8	Style	Tube to Pipe
Shape	Right Angle	Connection 2 Thread Size (inch)	1/2

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
