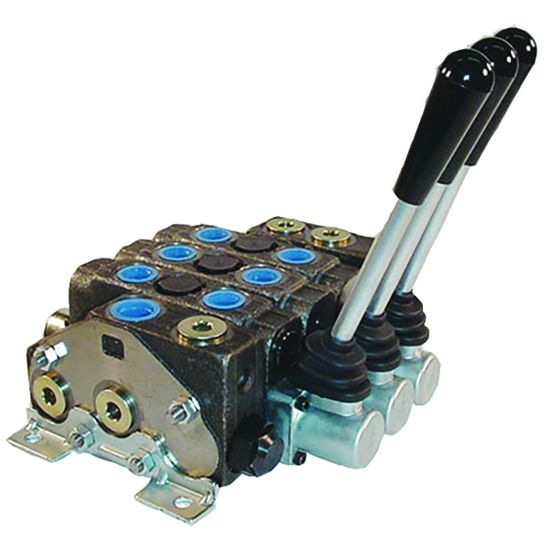

Parker V10 Series - Mobile Directional Control Valves -V10 Series

Parker’s V10 Series valve is a sectional, open center, CF (constant flow), directional control valve for mobile equipment. It is typically applied between 5 and 15 GPM pump flow at 3500 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V10 Series

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hydraulic Valve Systems Division	Minimum Operating Temperature	-40
Maximum Operating Pressure	3500	Actuation Type	Lever, Solenoid, Hydraulic Remote, Mechanical Joystick
Function	Open Center	Maximum Flow Rate	15
Configuration	Sectional, up to 9 sections	Mounting Type	Inliine
For Fluid Type	Hydraulic Oil	Seal Material	Nitrile
Maximum Operating Temperature	+200	Body Material	Ductile Iron
Valve Style	Open-Center, Closed Center Directional Control Valve
