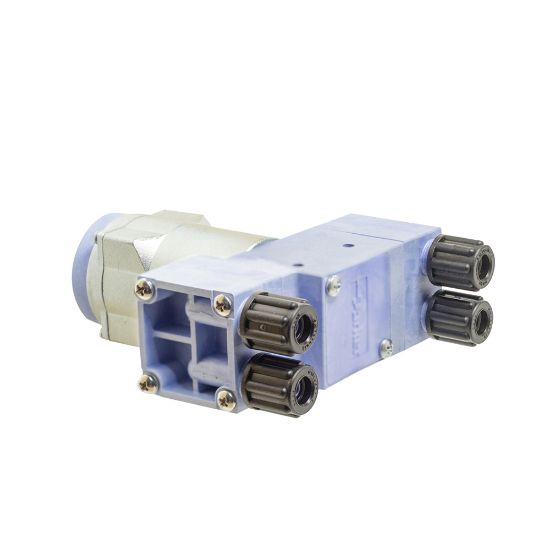

Parker V016-51 - LTC Miniature Diaphragm Pump (Liquid)

Parker’s LTC Miniature Diaphragm pump is a compact versatile pump with the option of a brush or brushless DC motor drives that can be configured for specific requirements and handle a wide variety of liquid media and range of pressures.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V016-51

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Vectra A130 LCP	Motor Type	Brushless DC
Industry Application	Liquid Chromatography	Noise Level	45 dBA
Diaphragm Material	EPDM	Division	Precision Fluidics Division
Operating Pressure	2068 mbar	Vacuum Pressure Rating	-686 mm-Hg
Width	1.2 inch	Weight	333 g
Product Type	Diaphragm Pump	Height	81.1 mm
Operational Life	10000 Hours	Flow Rate	up to 1.5 L/min
Maximum Continuous Pressure	2068 mbar	Operating Temperature	5 to 50 °C
For Fluid Type	Liquids	Length	85.1 mm
Maximum Continuous Vacuum Pressure	-686 mm-Hg	Free Flow Rate	Up to 1.5 L/min
Operational Life	10,000 Hours	Pump Type	Pressure and/or Vacuum
Connection Style	Compression 4/6 mm Tubing	Pump Size	Dual Head
Motor Option	Brushless DC
