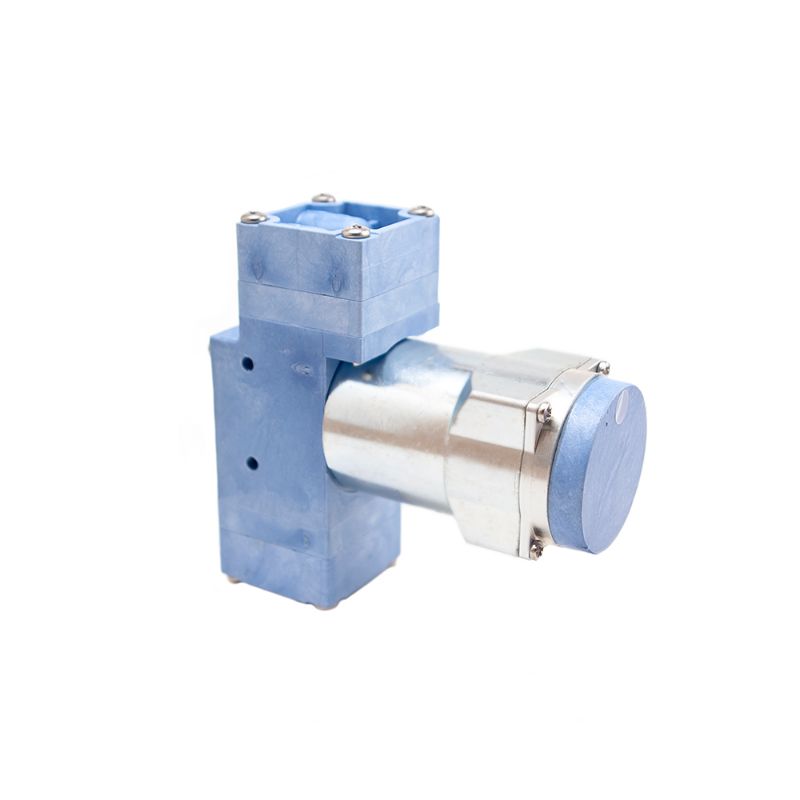

Parker V015-11 - LTC Miniature Diaphragm Pump (Liquid)

Parker’s LTC Miniature Diaphragm pump is a compact versatile pump with the option of a brush or brushless DC motor drives that can be configured for specific requirements and handle a wide variety of liquid media and range of pressures.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V015-11

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Type	Diaphragm Pump	Width	1.2 inch
Weight	333 g	Maximum Continuous Pressure	30 psi
Noise Level	45 dBA	Motor Type	Brushless DC
Operating Temperature	5 to 50 °C	Height	81.1 mm
Vacuum Pressure Rating	-686 mm-Hg	Industry Application	Large Format Printers
Maximum Continuous Vacuum Pressure	-686 mm-Hg	Flow Rate	up to 1.5 L/min
Operational Life	10000 Hours	Division	Precision Fluidics Division
Operating Pressure	2068 mbar	Diaphragm Material	EPDM
Body Material	Vectra A130 LCP	Length	85.1 mm
For Fluid Type	Gas	Free Flow Rate	Up to 1.5 L/min
Pump Size	Dual Head	Pump Type	Pressure and/or Vacuum
Motor Option	Brushless DC	Operational Life	10,000 Hours
Connection Style	Threaded 1/4-28 UNF
