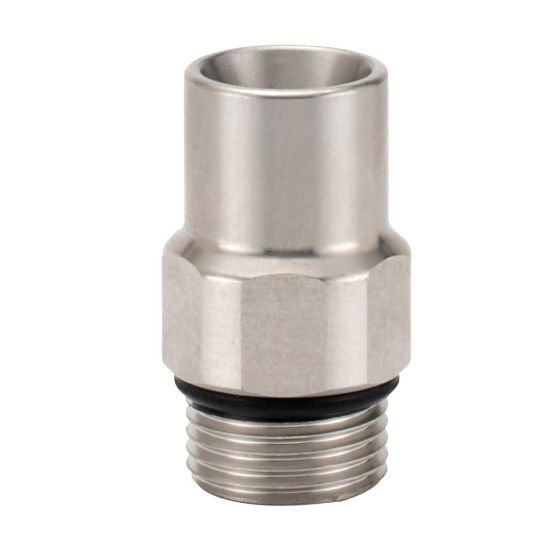

Picture of Parker UQDB-251-8MO - Universal Quick Disconnect Blindmate Couplings - UQDB Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker UQDB-251-8MO - Universal Quick Disconnect Blindmate Couplings - UQDB Series

UQDB Series, Universal Quick Disconnect Blindmate, flat face QDs are optimized for liquid cooling applications in data centers, servers and supercomputers. UQDB is based on an Open Compute, OCP design and is Nvidia Partner Network, NPN approved.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. UQDB-251-8MO
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hex Size.94 inchProduct TypePush to Connect
ColorNon-ColoredFlow Rate1.7 Gal/min
Connection TypeMale ThreadValve TypeFlat Face
ApplicationLiquid CoolingBody MaterialStainless Steel
Body Size1/4 (04) inchMaximum Operating Pressure150 psi
Maximum Operating Temperature158 °FDivisionQuick Coupling Division
Seal MaterialEPDMMinimum Operating Temperature32 °F
Coupling HalfFemale CouplerConnection Thread Size7/16 - 20 UNF
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
