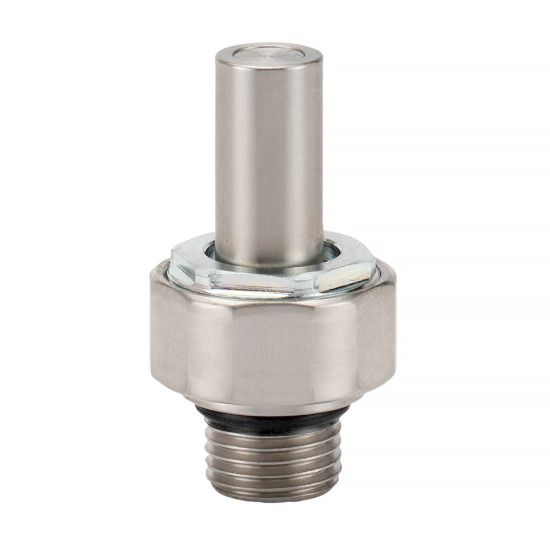

Parker UQDB-122-4MO - Universal Quick Disconnect Blindmate Couplings - UQDB Series

UQDB Series, Universal Quick Disconnect Blindmate, flat face QDs are optimized for liquid cooling applications in data centers, servers and supercomputers. UQDB is based on an Open Compute, OCP design and is Nvidia Partner Network, NPN approved.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. UQDB-122-4MO

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	158 °F	Connection Type	Male Thread
Seal Material	EPDM	Division	Quick Coupling Division
Valve Type	Flat Face	Application	Liquid Cooling
Body Material	Stainless Steel	Minimum Operating Temperature	32 °F
Maximum Operating Pressure	150 psi	Hex Size	.67 inch
Flow Rate	0.55 Gal/min	Color	Non-Colored
Product Type	Push to Connect	Body Size	1/8 (02) inch
Coupling Half	Male Nipple	Connection Thread Size	7/8 - 14 UNF

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
