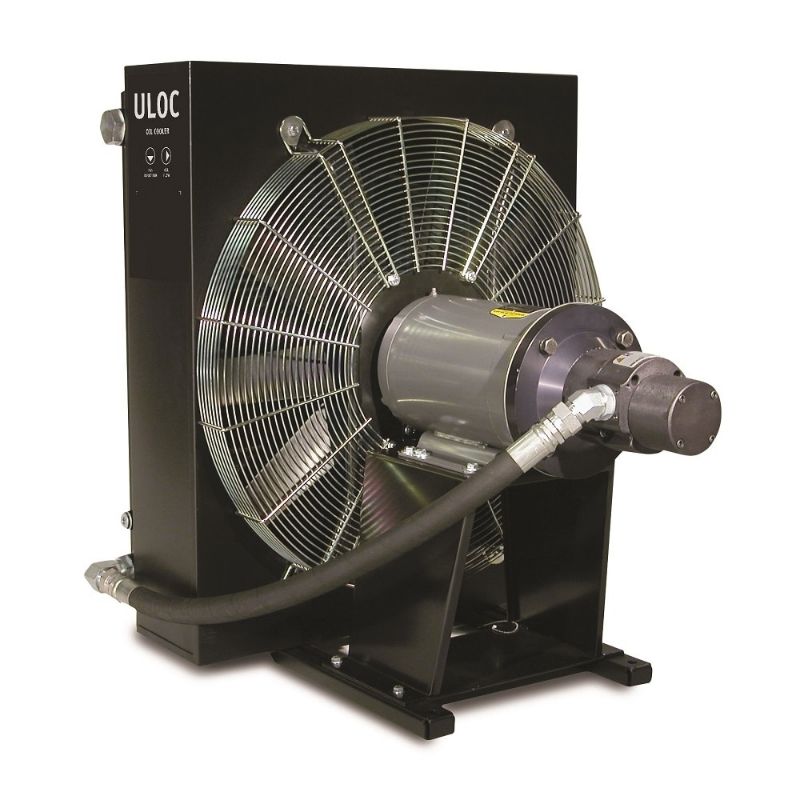

Parker ULOC-044G-M-D-SA - Complete Air Oil Cooler System with AC Motor - ULOC Series - (Americas)

ULOC Series oil coolers offer a compact and durable design that will provide efficient performance and long life. They provide up to 60hp of offline cooling and are suitable for most applications and environments.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ULOC-044G-M-D-SA

$8,861.81

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size	1-5/8"-12 inch
Port Size	1-1/4	Specifications Met	UL, CSA and CE Available on Motor
Motor Type	Three Phase	Noise Level	88 dBA
Weight	76.2 kg	Flow Rate	25.4 Gal/min
Motor Power Output Rating	5 HP	Materials of Construction	Steel
Maximum Fluid Temperature	250 °F	Width	33.9 inch
Maximum Cooling Capacity	43.1 kW	For Fluid Type	Mineral Oil
Length	690.9 mm	Maximum Operating Pressure	20.7 bar
Division	Accumulator and Cooler Division	Height	866.1 mm
Input Voltage	190/380	Frequency	50/60 Hz
Pump Size	25.4 gpm	Bypass Options	20 psi External Hose Bypass
Size	Size 044G	Motor Type	Three Phase, 190/380V 50 Hz, 208-230/460V 60 Hz
