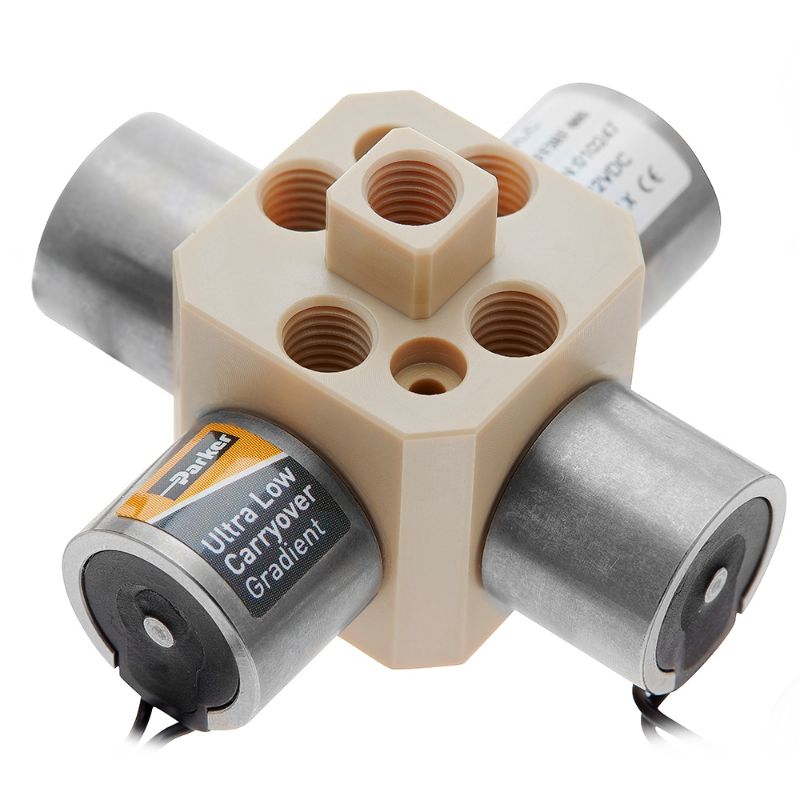

Parker ULC-524EP3RF-000 - Ultra Low Carryover Gradient Valve

Miniature Liquid Gradient Valve

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ULC-524EP3RF-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	2.45 oz (69.5g)	Coil Specifications Met	Yes
Function	Four Channel Proportioning Valve	Orifice Size	0.03" (0.75mm)
Length	1.95" (49.5mg)	Electrical Connection	Latching connectors with 4.5" (114 mm) leads
For Fluid Type	Liquids	Coil Power Consumption	3.0 Watts per coil
Response Time	< 10 msec	Industry	Analytical Chemistry, Clinical Diagnostics
Valve Type	Normally Closed	Height	1.19" (30.16mm)
Application	HPLC Gradient Proportioning, selector valve	Cycles per Lifetime	50 Million Cycles
Internal Leak Rate	0.15 sccm of Air	Flow Coefficient	0.011
Maximum Operating Pressure	45 psig (3.1 bar)	Flow Rate	Up to 320mL/min
Maximum Fluid Temperature	50C 122F	Actuation Type	Solenoid
Division	Precision Fluidics Division	Width	1.95" (49.5mm)
Maximum Flow Rate	320 ml/min	Pressure Rating	45 psig (3.1 bar)
Body Material	PEEK	Input Voltage	24V
Valve Configuration	Four Channel (5 Port)	Mounting Option	Radial Body 1/4 - 28
Seal Material	EPDM
