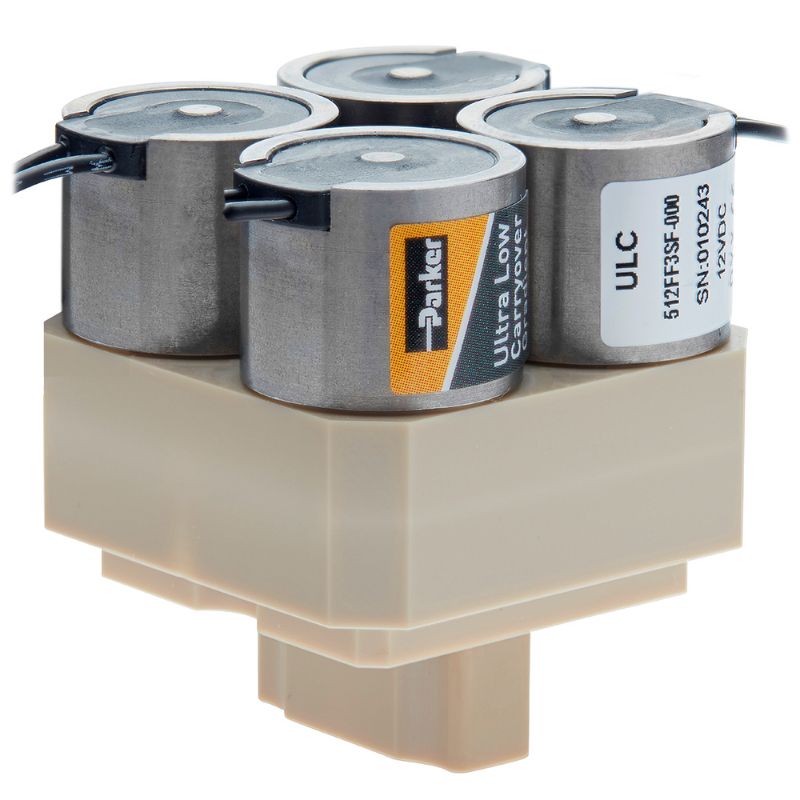

Parker ULC-512FF3SF-000 - Ultra Low Carryover Gradient Valve

Miniature Liquid Gradient Valve

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ULC-512FF3SF-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Cycles per Lifetime	50 Million Cycles	Application	HPLC Gradient Proportioning, selector valve
Internal Leak Rate	0.15 sccm of Air	Maximum Operating Pressure	45 psig (3.1 bar)
Height	1.48" (37.2mm)	Body Material	PEEK
Division	Precision Fluidics Division	Maximum Flow Rate	320 ml/min
Pressure Rating	45 psig (3.1 bar)	Actuation Type	Solenoid
Maximum Fluid Temperature	50C 122F	Width	1.25" (31.8mm)
Industry	Analytical Chemistry, Clinical Diagnostics	Coil Specifications Met	Yes
Electrical Connection	Latching connectors with 4.5" (114 mm) leads	Function	Four Channel Proportioning Valve
Orifice Size	0.03" (0.75mm)	Flow Coefficient	0.011
Flow Rate	Up to 320mL/min	Weight	2.56 oz (72.5g)
Length	1.25" (31.8mm)	Response Time	< 10 msec
Coil Power Consumption	3.0 Watts per coil	For Fluid Type	Liquids
Valve Type	Normally Closed	Input Voltage	12V
Valve Configuration	Four Channel (5 Port)	Mounting Option	Panel Mount 1/4 - 28
Seal Material	FFKM
