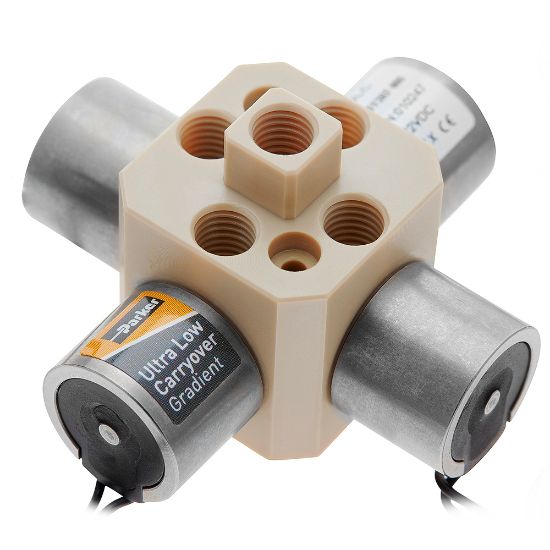

Parker ULC-512FF3RF-000 - Ultra Low Carryover Gradient Valve

Miniature Liquid Gradient Valve

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ULC-512FF3RF-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Valve Type	Normally Closed	For Fluid Type	Liquids
Industry	Analytical Chemistry, Clinical Diagnostics	Height	1.19" (30.16mm)
Coil Specifications Met	Yes	Maximum Fluid Temperature	Normally Closed
Maximum Operating Pressure	45 psig (3.1 bar)	Flow Coefficient	0.011
Flow Rate	Up to 320mL/min	Coil Power Consumption	3.0 Watts per coil
Response Time	< 10 msec	Body Material	PEEK
Actuation Type	Solenoid	Maximum Flow Rate	320 ml/min
Pressure Rating	45 psig (3.1 bar)	Application	HPLC Gradient Proportioning, selector valve
Cycles per Lifetime	50 Million Cycles	Length	1.95" (49.5mg)
Orifice Size	0.03" (0.75mm)	Function	Four Channel Proportioning Valve
Electrical Connection	Latching connectors with 4.5" (114 mm) leads	Weight	2.45 oz (69.5g)
Width	1.95" (49.5mm)	Division	Precision Fluidics Division
Internal Leak Rate	Normally Closed	Valve Configuration	Four Channel (5 Port)
Seal Material	FFKM	Mounting Option	Radial Body 1/4 - 28
Input Voltage	12V
