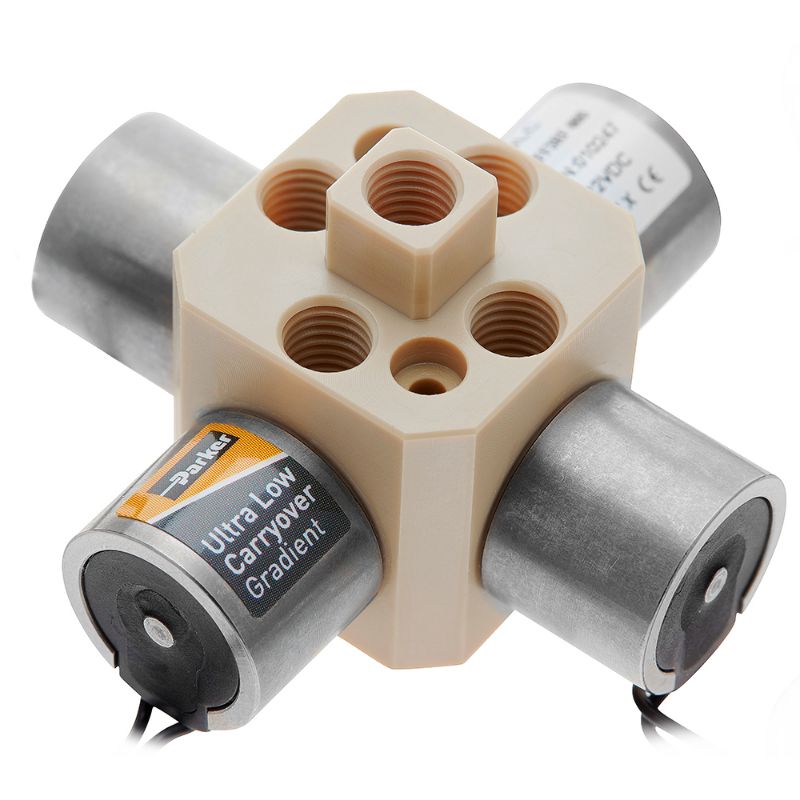

Parker ULC-512EP3RF-000 - Ultra Low Carryover Gradient Valve

Miniature Liquid Gradient Valve

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ULC-512EP3RF-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	Up to 320mL/min	Response Time	< 10 msec
Flow Coefficient	0.011	Coil Power Consumption	3.0 Watts per coil
For Fluid Type	Liquids	Valve Type	Normally Closed
Application	HPLC Gradient Proportioning, selector valve	Cycles per Lifetime	50 Million Cycles
Maximum Operating Pressure	45 psig (3.1 bar)	Internal Leak Rate	0.15 sccm of Air
Length	1.95" (49.5mg)	Width	1.95" (49.5mm)
Body Material	PEEK	Division	Precision Fluidics Division
Pressure Rating	45 psig (3.1 bar)	Actuation Type	Solenoid
Maximum Fluid Temperature	50C 122F	Maximum Flow Rate	320 ml/min
Height	1.19" (30.16mm)	Coil Specifications Met	Yes
Industry	Analytical Chemistry, Clinical Diagnostics	Electrical Connection	Latching connectors with 4.5" (114 mm) leads
Weight	2.45 oz (69.5g)	Function	Four Channel Proportioning Valve
Orifice Size	0.03" (0.75mm)	Seal Material	EPDM
Input Voltage	12V	Mounting Option	Radial Body 1/4 - 28
Valve Configuration	Four Channel (5 Port)
