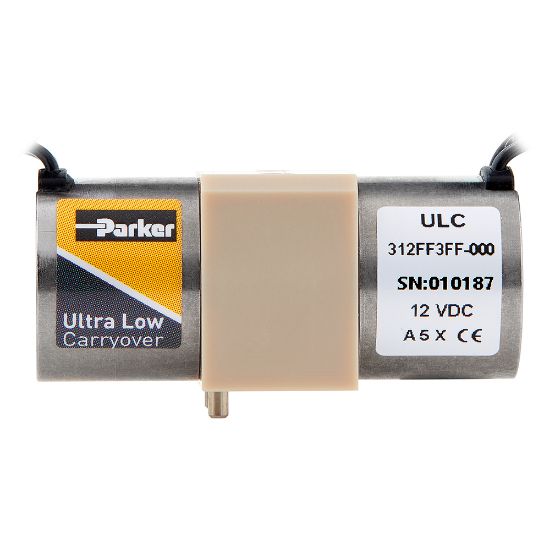

Parker ULC-312FF3FF-000 - Ultra Low Carryover Valve

Parker's Ultra Low Carryover Valve features best-in-class carryover performance and the ability to reduce fluidic circuit complexity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ULC-312FF3FF-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Response Time	< 10 msec	Application	Sampling, Reagent Addition, Flow Control, Proportioning
Max Order Quantity	9	Coil Power Consumption	3.0 Watts per coil
Out of Stock Lead Time	20	Cycles per Lifetime	10 Million Cycles
Width	0.65" (16.5 mm)	Internal Leak Rate	0.15 sccm of Air
Length	1.48" (37.6 mm)	Flow Coefficient	0.011
Product Weight	0.0956	Pressure Rating	45 psig (3.1 bar)
Industry	Clinical Diagnostics, Analytical Chemistry	Flow Rate	Up to 320 mL/min
Standard Lead Time	5	Body Material	PEEK
Division	Precision Fluidics Division	Orifice Size	0.03" (0.76 mm)
Electrical Connection	4.5" (114 mm) leads with Molex connector	Weight	1.06 oz (30.2 g)
Shipping Weight	0.25	Height	0.65" (16.5 mm)
Weight Unit of Measure	lbs	Valve Type	3 Port 4 Mode
Fluid Port Connection	Face Seal	Seal Material	FFKM
Valve Configuration	3 Port	Input Voltage	12V
