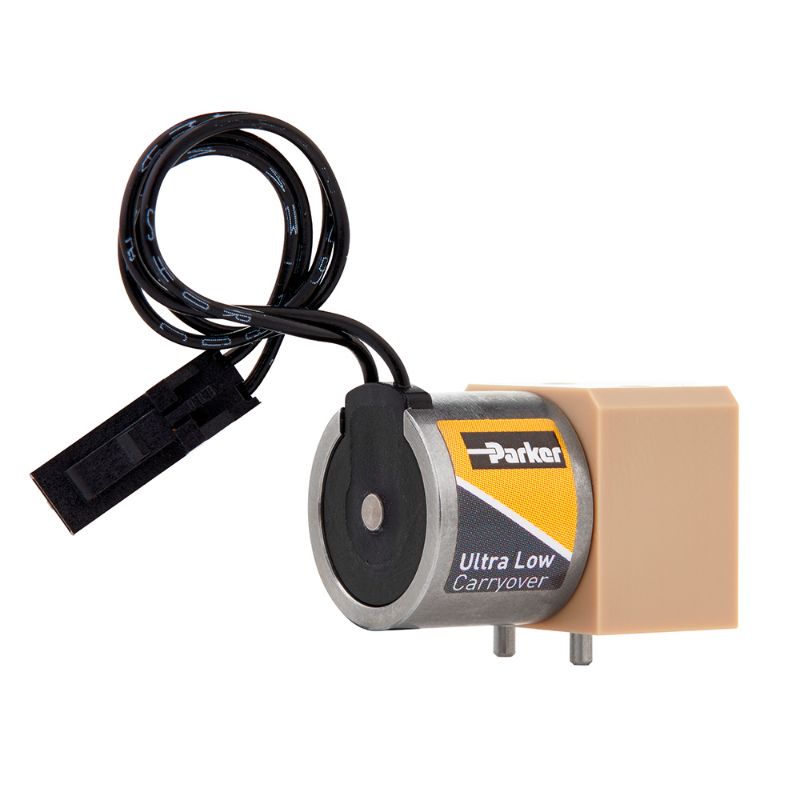

Parker ULC-212FF3FF-000 - Ultra Low Carryover Valve

Parker's Ultra Low Carryover Valve features best-in-class carryover performance and the ability to reduce fluidic circuit complexity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ULC-212FF3FF-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight Unit of Measure	lbs	Length	0.98" (24.77 mm)
Height	0.65" (16.5 mm)	Division	Precision Fluidics Division
Body Material	PEEK	Flow Rate	Up to 320 mL/min
Industry	Clinical Diagnostics, Analytical Chemistry	Standard Lead Time	5
Pressure Rating	45 psig (3.1 bar)	Width	0.65" (16.5 mm)
Out of Stock Lead Time	20	Cycles per Lifetime	10 Million Cycles
Shipping Weight	0.25	Weight	0.61 oz (17.3 g)
Product Weight	.0381	Flow Coefficient	0.011
Max Order Quantity	9	Application	Sampling, Reagent Addition, Flow Control, Proportioning
Response Time	< 10 msec	Coil Power Consumption	3.0 Watts per coil
Orifice Size	0.03" (0.76 mm)	Electrical Connection	4.5" (114 mm) leads with Molex connector
Internal Leak Rate	0.15 sccm of Air	Valve Type	2 Port 2 Mode
Input Voltage	12V	Valve Configuration	2 Port
Seal Material	FFKM	Fluid Port Connection	Face Seal
