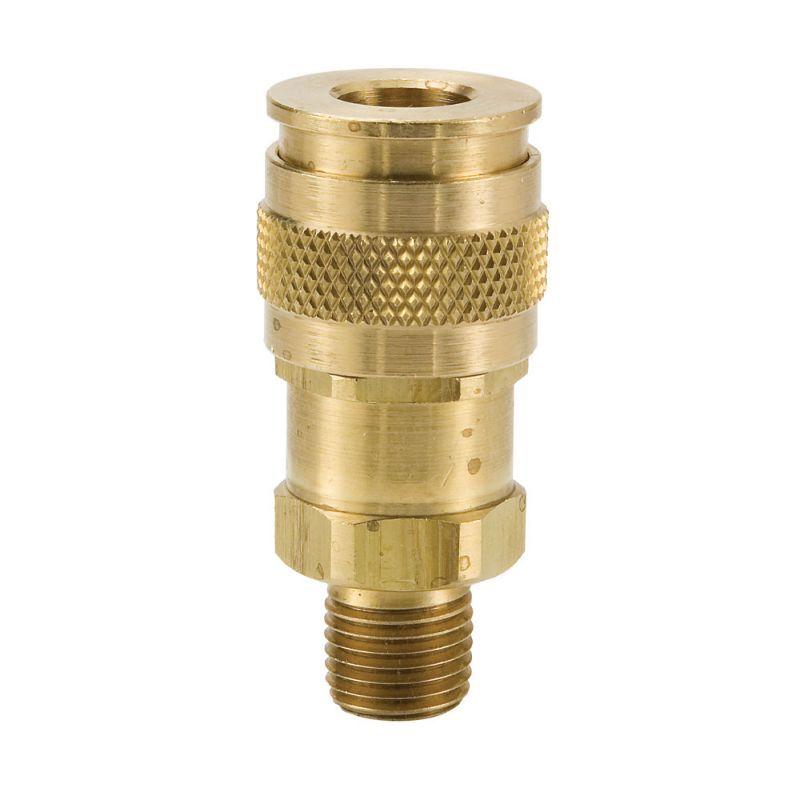

Parker UC-251-6MP - Universal Interchange, Quick Connect Air Couplers - UC Series

Parker's general purpose pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	15 In Stock

Brand Parker

Part No. UC-251-6MP

$38.67/each

Products specifications

Attribute name	Attribute value
Body Material	Brass	Lock Type	Locking balls
Media	Low pressure fluids and compressed air	Specifications Met	Connects with Industrial Interchange, 10 series (Tru-Flate), and 50 series (ARO 210) style nipples
Minimum Operating Temperature	-40 °F	Application	Air
Maximum Operating Pressure	150 psi	Coupling Half	Coupler
Seal Material	Nitrile	Body Size	1/4 inch
Sleeve Type	Push to connect	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Valve Type	Tubular
Dimensional Weight	0.06291129496402877 lb	Connection Type	NPTF
Thread Style	Male	Connection Thread Size (inch)	3/8 - 18

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
