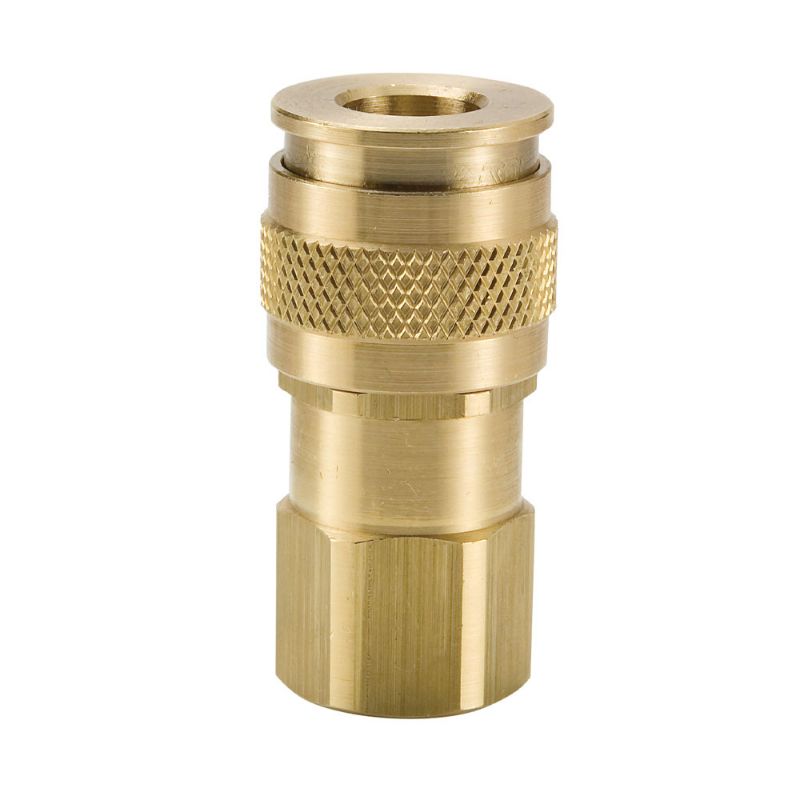

Parker UC-251-4FP - Universal Interchange, Quick Connect Air Couplers - UC Series

Name: Parker UC-251-4FP - Universal Interchange, Quick Connect Air Couplers - UC Series
SKU: UC-251-4FP
Price: 31.36 USD
Availability: InStock

Parker's general purpose pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:

37 In Stock

Sumter, SC	14
Ashland, VA	10 (Pickup only)
Richmond, VA	8
Richmond, VA	3 (Pickup only)
Summerville, SC	2

Partner Available:

220 In Stock

Brand Parker

Part No. UC-251-4FP

$31.36/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Media	Low pressure fluids and compressed air
Valve Type	Tubular	Coupling Half	Coupler
Dimensional Weight	0.026658673061550762 lb	Maximum Operating Pressure	150 psi
Specifications Met	Connects with Industrial Interchange, 10 series (Tru-Flate), and 50 series (ARO 210) style nipples	Lock Type	Locking balls
Application	Air	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Body Size	1/4 inch
Sleeve Type	Push to Connect	Seal Material	Nitrile
Body Material	Brass	Maximum Operating Temperature	250 °F
Thread Style	Female	Connection Thread Size (inch)	1/4 - 18
Connection Type	NPTF

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
