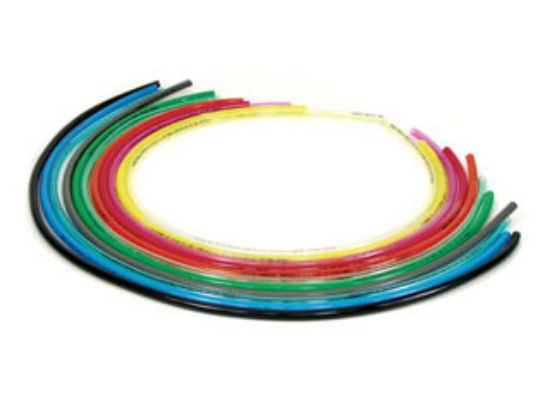

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker U-42.5-1000 - U Series Polyurethane

Parflex Medium Durometer Polyether Base for Pneumatic Applications

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. U-42.5-1000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Color	Natural	Pkg Qty	1000
Outer Diameter 1	1/4 Inch	UOM	FT
Material	Polyurethane	Max Pressure	125 PSI (9 bar)
Pkg Qty/UOM	1000 FT	Wall Thickness	0.04 Inch
Inner Diameter	0.17 Inch	Distinct Properties	Medium Durometer
Outer Diameter	1/4 Inch	Max Pressure Range	100 to 249 PSI (7 to 17 bar)
Wall Thickness	0.04 Inch	Outer Diameter Inch/mm	Inch
Inner Diameter Inch/mm	Inch	Application	Pneumatic
Material	Polyurethane	Series	U
Parker Division	Parflex	Color	Natural
Wall Thickness Inch/mm	Inch	Inch/Metric	Inch
Inner Diameter	0.17 Inch	Trade Name	Parflex
Parker Group	Fluid Connector

Product resources

Thermoplastic Tubing (PDF)
