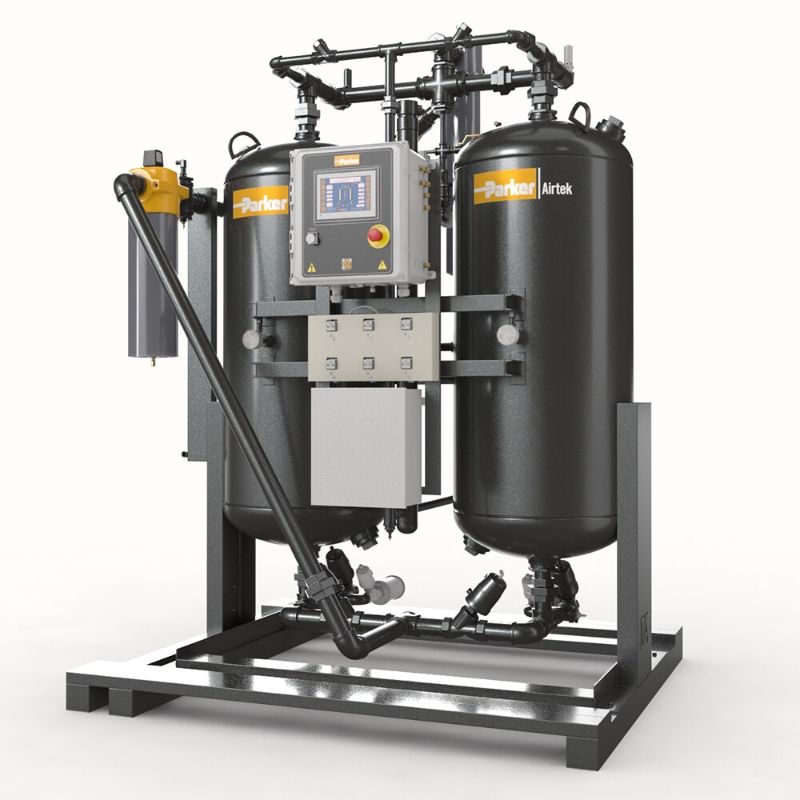

Parker TWP401BY41NNN - Externally Heated Desiccant Air Dryer - TWP Series

Parker Airtek TWP Series Externally Heated Desiccant Air Dryers use heat and the adsorption method to remove moisture from compressed air. Pressure dewpoint of -40°F (-40°C) and flowrate of 200 – 7500 scfm depending on model.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TWP401BY41NNN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Depth	27 inch	Maximum Flow Rate	680 m3/hour
Maximum Operating Temperature	120 °F	Compatible Prefilter	JC0450-C
Minimum Operating Pressure	80 psi	Minimum Operating Temperature	50 °F
Optional Accessories	Pre and After Filtration	Connection Type	2" NPT
Maximum Inlet Pressure Rating	100 PSI	Division	Industrial Gas Filtration and Generation Division
Compatible After Filter	JC0450-FH	Product Type	Heated
Purge Pressure Rate	28	Installed Condensate Drain Type	Timed Solenoid Drain
Maximum Operating Pressure	150 psi	Minimum Ambient Temperature	40 °F
Width	47 inch	Maximum Ambient Temperature	120 °F
Compatible Prefilter Element	JE-CC0450	Height	88 inch
Compatible After Filter Element	JE-FC0450-HT	Weight	1400 lb
Brand	Airtek	Pressure Dew Point (F)	-40
Maximum Flow Rate (cfm)	400	Electrical Requirements	460V/3Ph/60Hz
