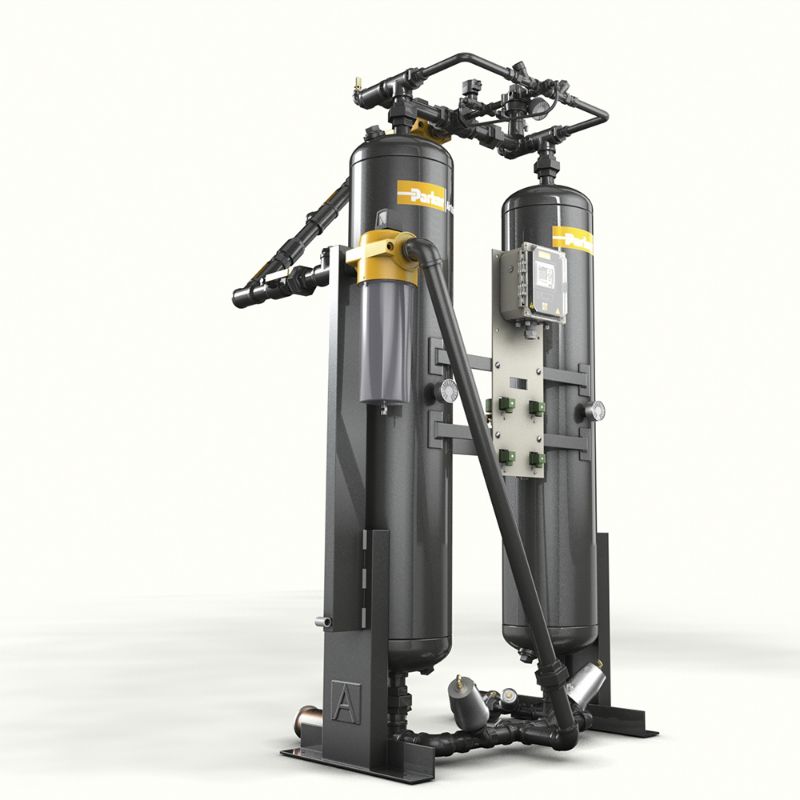

Parker TW76BN14NNN - Heatless Desiccant Air Dryer - TW Series

Note: This product is no longer available - please refer to the "Product Support" or "Recommended products" section of this page for details on any alternative products, or contact us for further assistance

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TW76BN14NNN

$6,354.93

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Width	30 inch
Maximum Operating Pressure	150 psi	Installed Condensate Drain Type	Timed Drain
Maximum Operating Temperature	120 °F	Maximum Ambient Temperature	120 °F
Compatible After Filter Element	JE-FC0110	Brand	Airtek
Minimum Ambient Temperature	40 °F	Maximum Flow Rate	127.43 m3/hour
Depth	18 inch	Height	81 inch
Weight	384 lb	Purge Pressure Rate	11
Connection Type	3/4 NPT	Compatible Prefilter	JC0085-C
Optional Accessories	Pre and After Filter	Minimum Operating Pressure	80 psi
Minimum Operating Temperature	50 °F	Maximum Inlet Pressure Rating	100 PSI
Compatible Prefilter Element	JE-CC0110	Division	Industrial Gas Filtration and Generation Division
Compatible After Filter	JC0085-F	Electrical Requirements	120 v / 1 ph / 60 hz
Maximum Flow Rate (cfm)	75	Pressure Dew Point (F)	-40
