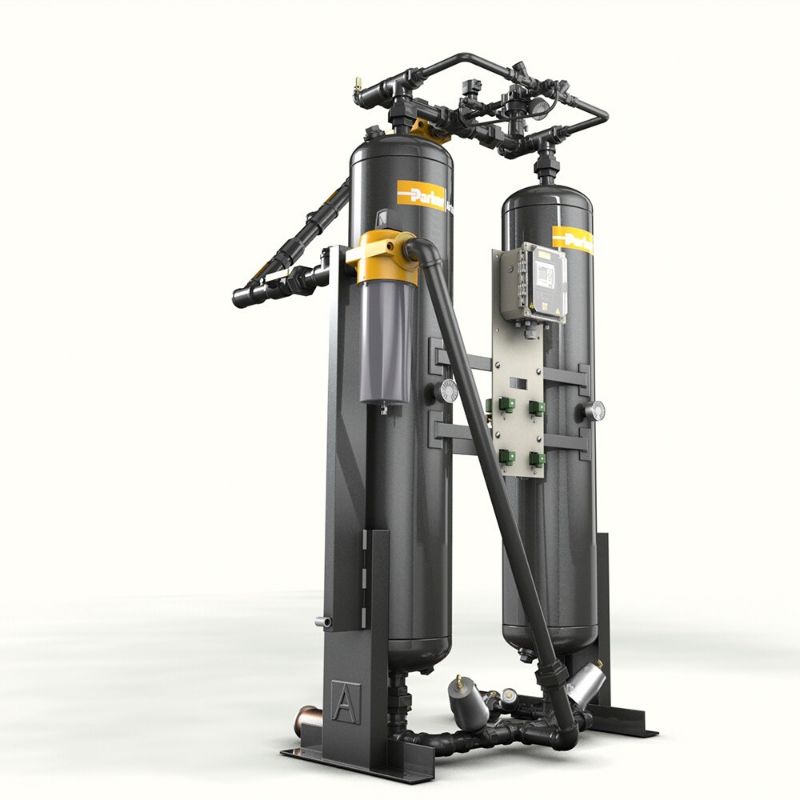

Parker TW201BN14NNN - Heatless Desiccant Air Dryer - TW Series

Note: This product is no longer available - please refer to the "Product Support" or "Recommended products" section of this page for details on any alternative products, or contact us for further assistance

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TW201BN14NNN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Ambient Temperature	120 °F	Maximum Operating Pressure	150 psi
Depth	22 inch	Minimum Ambient Temperature	40 °F
Height	82 inch	Brand	Airtek
Width	37 inch	Compatible Prefilter Element	JE-CC0350
Weight	692 lb	Connection Type	1 1/2 NPT
Installed Condensate Drain Type	Timed Drain	Maximum Operating Temperature	120 °F
Minimum Operating Temperature	50 °F	Optional Accessories	Pre and After Filter
Compatible After Filter	JC0250-F	Compatible Prefilter	JC0250-C
Maximum Inlet Pressure Rating	100 PSI	Compatible After Filter Element	FC-0600
Division	Industrial Gas Filtration and Generation Division	Purge Pressure Rate	30
Maximum Flow Rate	339.8 m3/hour	Minimum Operating Pressure	80 psi
Electrical Requirements	120 v / 1 ph / 60 hz	Maximum Flow Rate (cfm)	200
Pressure Dew Point (F)	-40
