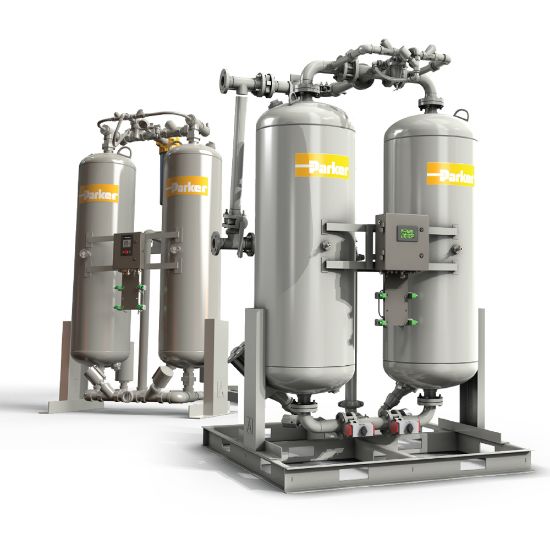

Parker TW0200-FB11NNF - Heatless Desiccant Air Dryers - NEXTGen TW Series

NEXTGen Twin Tower Heatless Desiccant Air Dryers remove contaminants in compressed air using Pressure Swing Adsorption technology. The dryers are sized to deliver a Pressure dewpoint of -40°F (-40°C) with flowrates from 55 - 3000 scfm.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TW0200-FB11NNF

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Compatible Prefilter	AAPX030GNFX	Division	Industrial Gas Filtration and Generation Division
Pressure Dew Point	-40°F	Minimum Operating Pressure	80 PSIG
Connection Type	1 1/2" NPT	Maximum Operating Temperature	120°F
Width	52 in	Current	2.0 A
Minimum Operating Temperature	50°F	Maximum Ambient Temperature	100°F
Purge Air Equivalent	30	Maximum Operating Pressure	150 psig
Weight	692 lbs	Compatible Prefilter Element	P030AA
Compatible After Filter	AOPX030GNMX	Maximum Inlet Pressure Rating	100 PSI
Installed Condensate Drain Type	Float Drain	Height	86 in
Minimum Ambient Temperature	40°F	Compatible After Filter Element	P030AO
Depth	36 in	Maximum Flow Rate	200 SCFM
Electrical Requirements	120V/1Ph/60Hz

Product resources

Literature and Reference Materials

Next Gen TW Series Heatless Desiccant Dryer User Manual Models TW0055 - TW3000 (PDF)
