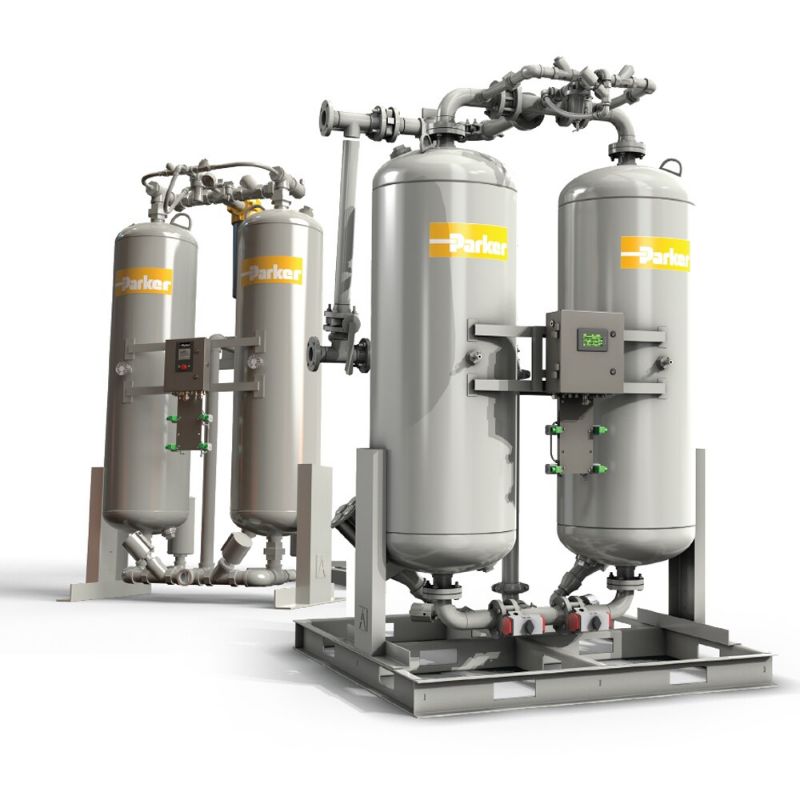

Parker TW0100-FB11NNF - Heatless Desiccant Air Dryers - NEXTGen TW Series

NEXTGen Twin Tower Heatless Desiccant Air Dryers remove contaminants in compressed air using Pressure Swing Adsorption technology. The dryers are sized to deliver a Pressure dewpoint of -40°F (-40°C) with flowrates from 55 - 3000 scfm.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TW0100-FB11NNF

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Compatible Prefilter Element	P025AA	Maximum Operating Pressure	150 psig
Compatible After Filter	AOPX025ENMX	Minimum Operating Pressure	80 PSIG
Pressure Dew Point	-40°F	Maximum Ambient Temperature	100°F
Minimum Ambient Temperature	40°F	Installed Condensate Drain Type	Float Drain
Purge Air Equivalent	15	Height	86 in
Compatible After Filter Element	P025AO	Minimum Operating Temperature	50°F
Compatible Prefilter	AAPX025ENFX	Depth	36 in
Connection Type	1'' NPT	Maximum Inlet Pressure Rating	100 PSI
Current	2.0 A	Maximum Operating Temperature	120°F
Width	52 in	Division	Industrial Gas Filtration and Generation Division
Weight	468 lbs	Electrical Requirements	120V/1Ph/60Hz
Maximum Flow Rate	100 SCFM

Product resources

Literature and Reference Materials

Heatless Desiccant Dryer User Manual Models TW0055 - TW3000 (PDF)
