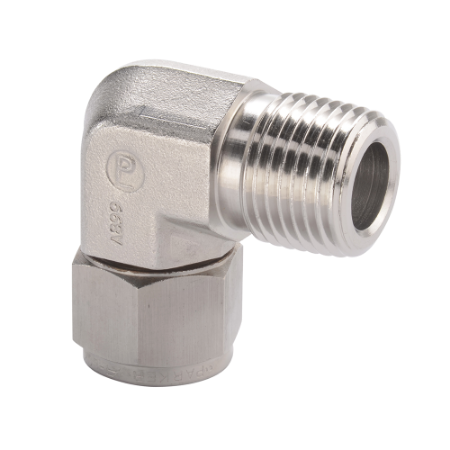

Parker Tube Fitting, NPT Male Elbow - A-LOK Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker's two ferrule compression fittings, A-LOK® NPT Male Elbow Tube Fittings are designed to provide reliable leak-free connections for instrumentation, process and control, and analyzer applications that specify a two ferrule tube fitting connection. Manufactured to the highest quality standards these tube fittings are available in a broad range of sizes, corrosion resistant materials and configurations.
As standard, Parker’s A-LOK® BSP Taper Male Connector Tube Fittings tube fitting are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276.
The fittings are available for fractional pipe sizes from 1/8” through to 2” O.D., and for metric sizes from 3 mm through to 25 mm O.D.
Markets:
• Semiconductor/Microelectronics
• Chemical
• Petro-Chemical
• Transportation
• Power
• Nuclear
• Oil and Gas
• Research Labs
Features/Benefits:
• Wide range of Corrosion Resistant Alloys available
• EC79 Approved for Hydrogen Service
• Parker Suparcase™ surface treatment process for superior material hardening
• Hardened ferrules provide leak free connections
• Silver plated nuts provide gall resistance during makeup
Applications:
• Instrumentation Hook-up Systems
• Analytical Installations
• CNG / LNG Lines
• Hydrogen Service
• Offshore Control Panels
• Sensing Lines
Read More...As standard, Parker’s A-LOK® BSP Taper Male Connector Tube Fittings tube fitting are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276.
The fittings are available for fractional pipe sizes from 1/8” through to 2” O.D., and for metric sizes from 3 mm through to 25 mm O.D.
Markets:
• Semiconductor/Microelectronics
• Chemical
• Petro-Chemical
• Transportation
• Power
• Nuclear
• Oil and Gas
• Research Labs
Features/Benefits:
• Wide range of Corrosion Resistant Alloys available
• EC79 Approved for Hydrogen Service
• Parker Suparcase™ surface treatment process for superior material hardening
• Hardened ferrules provide leak free connections
• Silver plated nuts provide gall resistance during makeup
Applications:
• Instrumentation Hook-up Systems
• Analytical Installations
• CNG / LNG Lines
• Hydrogen Service
• Offshore Control Panels
• Sensing Lines
| Action | Part No. | Availability | Partner Available | Price | UOM | Operating Pressure | Length | Division | Shape | Product Style | Application | Minimum Operating Temperature | Maximum Operating Temperature | Technology | Division | Brand | Industry | For Fluid Type | Configuration | Specifications Met | Materials of Construction | Options | Connection Thread Size | Tube Outside Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12MSEL12N-316 | Quote Required | 7 In Stock | $77.62/each | EA | 2400 to 5800 psi | 1.57 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | Hydrogen Service | -255 °C | 649 °C | Process Control | Instrumentation Products Division | A-LOK | Power Generation | Gases | Tube to Pipe (Male Pipe) | N/A | Stainless Steel AISI 316 | n/a | 3/4" NPT | 3/4" (O.D.) | |
| 16MSEL16N-316 | Quote Required | $151.80/each | EA | 2400 to 4700 psi | 1.93 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | Instrumentation | -255 °C | 649 °C | Process Control | Instrumentation Products Division | A-LOK | Microelectronics | Liquid | Tube to Pipe (Male Pipe) | N/A | Stainless Steel AISI 316 | n/a | 1" NPT | 1" (O.D.) | ||
| 2MSEL2N-316 | Quote Required | 3 In Stock | $29.79/each | EA | 8600 to 10900 psi | 0.93 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | Hydrogen Service | -255 °C | 649 °C | Process Control | Instrumentation Products Division | A-LOK | Semiconductor | Liquid | Tube to Pipe (Male Pipe) | N/A | Stainless Steel AISI 316 | n/a | 1/8" NPT | 1/8" (O.D.) | |
| 4MSEL2N-316 | Quote Required | 281 In Stock | $25.97/each | EA | 4000 to 10300 psi | 1.06 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | Research Labs | -255 °C | 649 °C | Process Control | Instrumentation Products Division | A-LOK | Oil & Gas | Natural Gas (CNG) | Tube to Pipe (Male Pipe) | N/A | Stainless Steel AISI 316 | n/a | 1/8" NPT | 1/4" (O.D.) | |
| 4MSEL4N-316 | Quote Required | 100 In Stock | $28.07/each | EA | 4000 to 10300 psi | 1.06 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | CNG / LNG Lines | -255 °C | 649 °C | Process Control | Instrumentation Products Division | A-LOK | Oil & Gas | Fuels | Tube to Pipe (Male Pipe) | N/A | Stainless Steel AISI 316 | n/a | 1/4" NPT | 1/4" (O.D.) | |
| 4MSEL6N-316 | 1 Limited Stock | 29 In Stock | $41.30/each | EA | 4000 to 10300 psi | 1.17 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | Instrumentation | -255 °C | 649 °C | Process Control | Instrumentation Products Division | A-LOK | Petrochemical | Oil | Tube to Pipe (Male Pipe) | N/A | Stainless Steel AISI 316 | n/a | 3/8" NPT | 1/4" (O.D.) | |
| 4MSEL6N-B | 1 Limited Stock | 4 In Stock | $11.00/each | EA | 4000 to 10300 psi | 1.17 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | CNG / LNG Lines | - | - | Process Control | Instrumentation Products Division | A-LOK | Semiconductor | Corrosive | Tube to Pipe (Male Pipe) | N/A | Brass | n/a | 3/8" NPT | 1/4" (O.D.) | |
| 4MSEL8N-316 | Quote Required | 17 In Stock | $47.60/each | EA | 4000 to 10300 psi | 1.25 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | CNG / LNG Lines | -255 °C | 649 °C | Process Control | Instrumentation Products Division | A-LOK | Petrochemical | Fuels | Tube to Pipe | N/A | Stainless Steel AISI 316 | n/a | 1/2" NPT | 1/4" (O.D.) | |
| 5MSEL2N-316 | Quote Required | $46.17/each | EA | 4100 to 8100 psi | 1.13 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | Hydrogen Service | -255 °C | 649 °C | Process Control | Instrumentation Products Division | A-LOK | Oil & Gas | Corrosive | Tube to Pipe (Male Pipe) | N/A | Stainless Steel AISI 316 | n/a | 1/8" NPT | 5/16" (O.D.) | ||
| 5MSEL4N-316 | Quote Required | 41 In Stock | $47.09/each | EA | 4100 to 8100 psi | 1.13 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | Hydrogen Service | -255 °C | 649 °C | Process Control | Instrumentation Products Division | A-LOK | Transportation | Gases | Tube to Pipe (Male Pipe) | N/A | Stainless Steel AISI 316 | n/a | 1/4" NPT | 5/16" (O.D.) | |
| 6MSEL2N-316 | Quote Required | 30 In Stock | $37.60/each | EA | 3300 to 6600 psi | 1.20 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | CNG / LNG Lines | -255 °C | 649 °C | Process Control | Instrumentation Products Division | A-LOK | Semiconductor | Corrosive | Tube to Pipe (Male Pipe) | N/A | Stainless Steel AISI 316 | n/a | 1/8" NPT | 3/8" (O.D.) | |
| 6MSEL4N-316 | 4 In Stock | 264 In Stock | $34.65/each | EA | 3300 to 6600 psi | 1.20 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | Instrumentation | -255 °C | 649 °C | Process Control | Instrumentation Products Division | A-LOK | Semiconductor | Liquid | Tube to Pipe (Male Pipe) | N/A | Stainless Steel AISI 316 | n/a | 1/4" NPT | 3/8" (O.D.) | |
| 6MSEL6N-316 | Quote Required | 90 In Stock | $41.71/each | EA | 3300 to 6600 psi | 1.23 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | Analytical Installations | -255 °C | 649 °C | Process Control | Instrumentation Products Division | A-LOK | Semiconductor | Hydrogen | Tube to Pipe (Male Pipe) | N/A | Stainless Steel AISI 316 | n/a | 3/8" NPT | 3/8" (O.D.) | |
| 6MSEL6N-B | 9 In Stock | 32 In Stock | $25.93/each | EA | 3300 to 6600 psi | 1.23 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | Analytical Installations | - | - | Process Control | Instrumentation Products Division | A-LOK | Semiconductor | Oil | Tube to Pipe (Male Pipe) | N/A | Brass | n/a | 3/8" NPT | 3/8" (O.D.) | |
| 6MSEL8N-316 | Quote Required | 124 In Stock | $53.33/each | EA | 3300 to 6600 psi | 1.31 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | Research Labs | -255 °C | 649 °C | Process Control | Instrumentation Products Division | A-LOK | Semiconductor | Gases | Tube to Pipe (Male Pipe) | N/A | Stainless Steel AISI 316 | n/a | 1/2" NPT | 3/8" (O.D.) | |
| 6MSEL8N-B | Quote Required | 4 In Stock | $16.87/each | EA | 3300 to 6600 psi | 1.31 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | CNG / LNG Lines | - | - | Process Control | Instrumentation Products Division | A-LOK | Oil & Gas | Gases | Tube to Pipe (Male Pipe) | N/A | Brass | n/a | 1/2" NPT | 3/8" (O.D.) | |
| 8MSEL4N-316 | 4 In Stock | 56 In Stock | $51.02/each | EA | 2600 to 6700 psi | 1.42 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | Analytical Installations | -255 °C | 649 °C | Process Control | Instrumentation Products Division | A-LOK | Chemical | Petroleum Oil | Tube to Pipe (Male Pipe) | N/A | Stainless Steel AISI 316 | n/a | 1/4" NPT | 1/2" (O.D.) | |
| 8MSEL6N-316 | Quote Required | 63 In Stock | $51.30/each | EA | 2600 to 6700 psi | 1.42 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | Instrumentation | -255 °C | 649 °C | Process Control | Instrumentation Products Division | A-LOK | Power Generation | Oil | Tube to Pipe (Male Pipe) | N/A | Stainless Steel AISI 316 | n/a | 3/8" NPT | 1/2" (O.D.) | |
| 8MSEL6N-B | Quote Required | 9 In Stock | $1.00/each | EA | 2600 to 6700 psi | 1.42 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | CNG / LNG Lines | - | - | Process Control | Instrumentation Products Division | A-LOK | Semiconductor | Gases | Tube to Pipe (Male Pipe) | N/A | Brass | n/a | 3/8" NPT | 1/2" (O.D.) | |
| 8MSEL8N-316 | Quote Required | 163 In Stock | $60.96/each | EA | 2600 to 6700 psi | 1.42 inch | Instrumentation Products Division | Elbow | Male National Pipe Tapered (NPT) Elbow | Sensing Lines | -255 °C | 649 °C | Process Control | Instrumentation Products Division | A-LOK | Power Generation | Oil | Tube to Pipe (Male Pipe) | N/A | Stainless Steel AISI 316 | n/a | 1/2" NPT | 1/2" (O.D.) |
