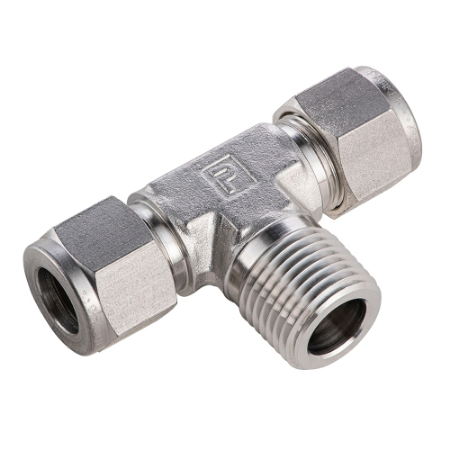

Parker Tube Fitting, NPT Male Branch Tee - A-LOK Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker's two ferrule compression fittings, A-LOK® NPT Male Branch Tee Tube Fittings are designed to provide reliable leak-free connections for instrumentation, process and control, and analyzer applications that specify a two ferrule tube fitting connection. Manufactured to the highest quality standards these tube fittings are available in a broad range of sizes, corrosion resistant materials and configurations.
As standard, Parker’s A-LOK® NPT Male Branch Tee Tube Fittings are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276.
The fittings are available for fractional pipe sizes from 1/8” through to 1” O.D., and for metric sizes from 6 mm through to 16 mm O.D.
Markets:
• Semiconductor/Microelectronics
• Chemical
• Petro-Chemical
• Transportation
• Power
• Nuclear
• Oil and Gas
• Research Labs
Features/Benefits:
• Wide range of Corrosion Resistant Alloys available
• EC79 Approved for Hydrogen Service
• Parker Suparcase™ surface treatment process for superior material hardening
• Hardened ferrules provide leak free connections
• Silver plated nuts provide gall resistance during makeup
Applications:
• Instrumentation Hook-up Systems
• Analytical Installations
• CNG / LNG Lines
• Hydrogen Service
• Offshore Control Panels
• Sensing Lines
Read More...As standard, Parker’s A-LOK® NPT Male Branch Tee Tube Fittings are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276.
The fittings are available for fractional pipe sizes from 1/8” through to 1” O.D., and for metric sizes from 6 mm through to 16 mm O.D.
Markets:
• Semiconductor/Microelectronics
• Chemical
• Petro-Chemical
• Transportation
• Power
• Nuclear
• Oil and Gas
• Research Labs
Features/Benefits:
• Wide range of Corrosion Resistant Alloys available
• EC79 Approved for Hydrogen Service
• Parker Suparcase™ surface treatment process for superior material hardening
• Hardened ferrules provide leak free connections
• Silver plated nuts provide gall resistance during makeup
Applications:
• Instrumentation Hook-up Systems
• Analytical Installations
• CNG / LNG Lines
• Hydrogen Service
• Offshore Control Panels
• Sensing Lines
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Product Style | Minimum Operating Temperature | Shape | Application | Length | Operating Pressure | Brand | Industry | For Fluid Type | Division | Configuration | Technology | Maximum Operating Temperature | Materials of Construction | Options | Connection Thread Size | Tube Outside Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4MBT4N-316 | Quote Required | 49 In Stock | $61.00/each | EA | Instrumentation Products Division | Male Branch Tee | -255 °C | Tee | Hydrogen Service | 2.12 inch | 4000 to 10300 psi | A-LOK | Petrochemical | Fuels | Instrumentation Products Division | Tube to Pipe (Male Pipe) | Process Control | 649 °C | Stainless Steel AISI 316 | n/a | 1/4" NPT | 1/4" (O.D.) | |
| 8MBT8N-316 | Quote Required | 67 In Stock | $104.94/each | EA | Instrumentation Products Division | Male Branch Tee | -255 °C | Tee | CNG / LNG Lines | 2.86 inch | 2600 to 6700 psi | A-LOK | Microelectronics | Natural Gas (CNG) | Instrumentation Products Division | Tube to Pipe (Male Pipe) | Process Control | 649 °C | Stainless Steel AISI 316 | n/a | 1/2" NPT | 1/2" (O.D.) |
