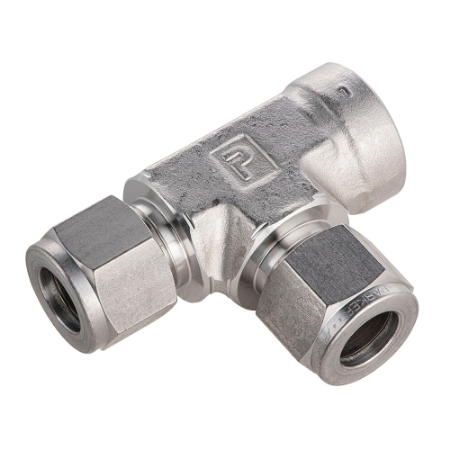

Parker Tube Fitting, NPT Female Run Tee - A-LOK Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's two ferrule compression fittings, A-LOK® NPT Female Run Tee Tube Fittings are designed to provide reliable leak-free connections for instrumentation, process and control, and analyzer applications that specify a two ferrule tube fitting connection. Manufactured to the highest quality standards these tube fittings are available in a broad range of sizes, corrosion resistant materials and configurations.
As standard, Parker’s A-LOK® NPT Female Run Tee Tube Fittings are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276.
The fittings are available for fractional pipe sizes from 1/8” through to 1” O.D., and for metric sizes from 6 mm through to 16 mm O.D.
Markets:
• Semiconductor/Microelectronics
• Chemical
• Petro-Chemical
• Transportation
• Power
• Nuclear
• Oil and Gas
• Research Labs
Features/Benefits:
• Wide range of Corrosion Resistant Alloys available
• EC79 Approved for Hydrogen Service
• Parker Suparcase™ surface treatment process for superior material hardening
• Hardened ferrules provide leak free connections
• Silver plated nuts provide gall resistance during makeup
Applications:
• Instrumentation Hook-up Systems
• Analytical Installations
• CNG / LNG Lines
• Hydrogen Service
• Offshore Control Panels
• Sensing Lines
Read More...As standard, Parker’s A-LOK® NPT Female Run Tee Tube Fittings are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276.
The fittings are available for fractional pipe sizes from 1/8” through to 1” O.D., and for metric sizes from 6 mm through to 16 mm O.D.
Markets:
• Semiconductor/Microelectronics
• Chemical
• Petro-Chemical
• Transportation
• Power
• Nuclear
• Oil and Gas
• Research Labs
Features/Benefits:
• Wide range of Corrosion Resistant Alloys available
• EC79 Approved for Hydrogen Service
• Parker Suparcase™ surface treatment process for superior material hardening
• Hardened ferrules provide leak free connections
• Silver plated nuts provide gall resistance during makeup
Applications:
• Instrumentation Hook-up Systems
• Analytical Installations
• CNG / LNG Lines
• Hydrogen Service
• Offshore Control Panels
• Sensing Lines
| Action | Part No. | Availability | Partner Available | Price | UOM | Materials of Construction | Shape | Industry | For Fluid Type | Technology | Division | Brand | Division | Minimum Operating Temperature | Configuration | Maximum Operating Temperature | Application | Product Style | Length | Operating Pressure | Materials of Construction | Options | Connection Thread Size | Tube Outside Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12FRT12N-316 | Quote Required | $225.48/each | EA | Stainless Steel AISI 316 | Tee | Semiconductor | Fuels | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | -255 °C | Tube to Pipe (Female Pipe) | 649 °C | CNG / LNG Lines | Female National Pipe Tapered (NPT) Run Tee | 3.01 inch | 2400 to 5800 psi | Stainless Steel AISI 316 | n/a | 3/4" NPT | 3/4" (O.D.) |
