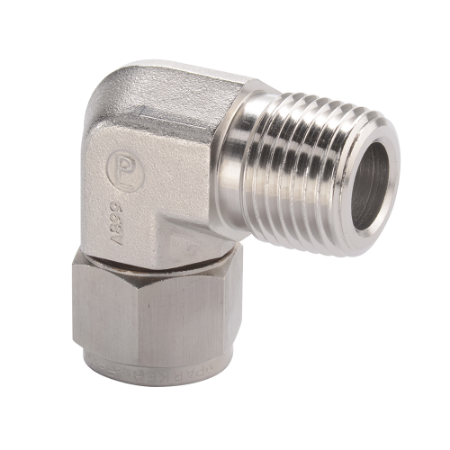

Parker Tube Fitting, BSP Taper Male Elbow - A-LOK Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's two ferrule compression fittings, A-LOK®BSP Taper Male Elbow Tube Fittings are designed to provide reliable leak-free connections for instrumentation, process and control, and analyzer applications that specify a two ferrule tube fitting connection. Manufactured to the highest quality standards these tube fittings are available in a broad range of sizes, corrosion resistant materials and configurations.
As standard, Parker’s A-LOK® BSP Taper Male Connector Tube Fittings are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276.
The fittings are available for fractional pipe sizes from 1/4” through to 1/2” O.D., and for metric sizes from 3 mm through to 25 mm O.D.
Markets:
• Semiconductor/Microelectronics
• Chemical
• Petro-Chemical
• Transportation
• Power
• Nuclear
• Oil and Gas
• Research Labs
Features/Benefits:
• Wide range of Corrosion Resistant Alloys available
• EC79 Approved for Hydrogen Service
• Parker Suparcase™ surface treatment process for superior material hardening
• Hardened ferrules provide leak free connections
• Silver plated nuts provide gall resistance during makeup
Applications:
• Instrumentation Hook-up Systems
• Analytical Installations
• CNG / LNG Lines
• Hydrogen Service
• Offshore Control Panels
• Sensing Lines
Read More...As standard, Parker’s A-LOK® BSP Taper Male Connector Tube Fittings are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276.
The fittings are available for fractional pipe sizes from 1/4” through to 1/2” O.D., and for metric sizes from 3 mm through to 25 mm O.D.
Markets:
• Semiconductor/Microelectronics
• Chemical
• Petro-Chemical
• Transportation
• Power
• Nuclear
• Oil and Gas
• Research Labs
Features/Benefits:
• Wide range of Corrosion Resistant Alloys available
• EC79 Approved for Hydrogen Service
• Parker Suparcase™ surface treatment process for superior material hardening
• Hardened ferrules provide leak free connections
• Silver plated nuts provide gall resistance during makeup
Applications:
• Instrumentation Hook-up Systems
• Analytical Installations
• CNG / LNG Lines
• Hydrogen Service
• Offshore Control Panels
• Sensing Lines
| Action | Part No. | Availability | Partner Available | Price | Industry | Application | Length | Shape | Technology | Division | Brand | Division | For Fluid Type | Configuration | Maximum Operating Temperature | Minimum Operating Temperature | Operating Pressure | Product Style | Specifications Met | Materials of Construction | Options | Tube Outside Diameter | Connection Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10MSEL8K-316 | Quote Required | TBD | Transportation | Instrumentation | n/a | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Hydrogen | Tube to Pipe (Male Pipe) | 649 °C | -198 °C | 3000 to 6100 psi | Male BSP Taper Elbow | N/A | Stainless Steel AISI 316 | n/a | 5/8" (O.D.) | 1/2" BSP | ||
| 4MSEL2K-316 | Quote Required | TBD | Petrochemical | Analytical Installations | 1.06 inch | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Natural Gas (CNG) | Tube to Pipe (Male Pipe) | 649 °C | -255 °C | 4000 to 10300 psi | Male BSP Taper Elbow | N/A | Stainless Steel AISI 316 | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL2K-316-NC | Quote Required | TBD | Semiconductor | Analytical Installations | 1.06 | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Gases | Tube to Pipe (Male Pipe) | 649 | -255 | 4000 to 10300 | Male BSP Taper Elbow | NACE | Stainless Steel AISI 316 | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL2K-625 | Quote Required | TBD | Semiconductor | Analytical Installations | 1.06 | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Gases | Tube to Pipe (Male Pipe) | 649 | -198 | 4000 to 10300 | Male BSP Taper Elbow | N/A | Alloy 625 | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL2K-625-NC | Quote Required | TBD | Semiconductor | Sensing Lines | 1.06 | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Gases | Tube to Pipe (Male Pipe) | 649 | -198 | 4000 to 10300 | Male BSP Taper Elbow | NACE | Alloy 625 | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL2K-6MO | Quote Required | TBD | Power Generation | Research Labs | 1.06 inch | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Fuels | Tube to Pipe (Male Pipe) | 371 °C | -198 °C | 4000 to 10300 psi | Male BSP Taper Elbow | N/A | 6Mo | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL2K-6MO-NC | Quote Required | TBD | Semiconductor | Analytical Installations | 1.06 | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Gases | Tube to Pipe (Male Pipe) | 371 | -198 | 4000 to 10300 | Male BSP Taper Elbow | NACE | 6Mo | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL2K-825 | Quote Required | TBD | Semiconductor | Analytical Installations | 1.06 | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Gases | Tube to Pipe (Male Pipe) | 426 | -198 | 4000 to 10300 | Male BSP Taper Elbow | N/A | Alloy 825 | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL2K-825-NC | Quote Required | TBD | Semiconductor | Analytical Installations | 1.06 | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Gases | Tube to Pipe (Male Pipe) | 426 | -198 | 4000 to 10300 | Male BSP Taper Elbow | NACE | Alloy 825 | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL2K-B | Quote Required | TBD | Petrochemical | Instrumentation | 1.06 inch | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Steam | Tube to Pipe (Male Pipe) | n/a | n/a | 4000 to 10300 psi | Male BSP Taper Elbow | N/A | Brass | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL2K-B-NC | Quote Required | TBD | Semiconductor | Analytical Installations | 1.06 | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Gases | Tube to Pipe (Male Pipe) | n/a | n/a | 4000 to 10300 | Male BSP Taper Elbow | NACE | Brass | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL2K-M | Quote Required | TBD | Nuclear | Instrumentation | 1.06 inch | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Liquid | Tube to Pipe (Male Pipe) | 371 °C | -198 °C | 4000 to 10300 psi | Male BSP Taper Elbow | N/A | Monel 400 | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL2K-M-NC | Quote Required | TBD | Semiconductor | Analytical Installations | 1.06 | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Gases | Tube to Pipe (Male Pipe) | 371 | -198 | 4000 to 10300 | Male BSP Taper Elbow | NACE | Monel 400 | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL2K-NNR | Quote Required | TBD | Semiconductor | Hydrogen Service | 1.06 | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Gases | Tube to Pipe (Male Pipe) | 535 | -198 | 4000 to 10300 | Male BSP Taper Elbow | N/A | Alloy C-276 | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL2K-NNR-NC | Quote Required | TBD | Semiconductor | Analytical Installations | 1.06 | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Gases | Tube to Pipe (Male Pipe) | 535 | -198 | 4000 to 10300 | Male BSP Taper Elbow | NACE | Alloy C-276 | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL2K-S | Quote Required | TBD | Semiconductor | Analytical Installations | 1.06 | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Gases | Tube to Pipe (Male Pipe) | n/a | n/a | 4000 to 10300 | Male BSP Taper Elbow | N/A | Steel | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL2K-S-NC | Quote Required | TBD | Semiconductor | Analytical Installations | 1.06 | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Gases | Tube to Pipe (Male Pipe) | n/a | n/a | 4000 to 10300 | Male BSP Taper Elbow | NACE | Steel | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL2K-T | Quote Required | TBD | Semiconductor | Analytical Installations | 1.06 | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Gases | Tube to Pipe (Male Pipe) | 315 | -59 | 4000 to 10300 | Male BSP Taper Elbow | N/A | Titanium | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL2K-T-NC | Quote Required | TBD | Semiconductor | Analytical Installations | 1.06 | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Gases | Tube to Pipe (Male Pipe) | 315 | -59 | 4000 to 10300 | Male BSP Taper Elbow | NACE | Titanium | n/a | 1/4" (O.D.) | 1/8" BSP | ||
| 4MSEL4K-316 | Quote Required | TBD | Nuclear | CNG / LNG Lines | 1.06 inch | Elbow | Process Control | Instrumentation Products Division | A-LOK | Instrumentation Products Division | Oil | Tube to Pipe (Male Pipe) | 649 °C | -255 °C | 4000 to 10300 psi | Male BSP Taper Elbow | N/A | Stainless Steel AISI 316 | n/a | 1/4" (O.D.) | 1/4" BSP |
