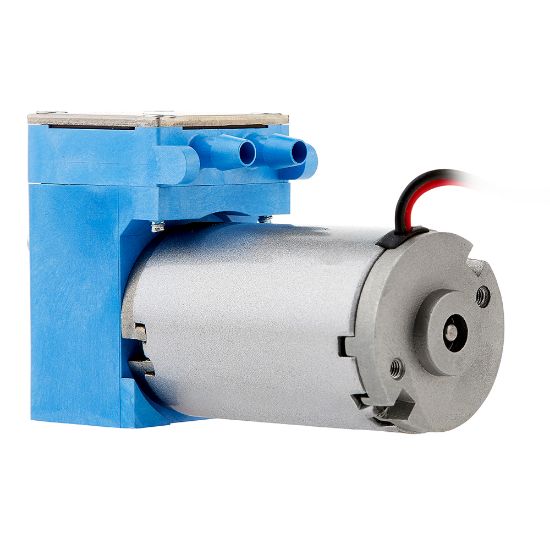

Parker TS008-12 - TTC Miniature Diaphragm Pump

Parker's TTC Miniature Diaphragm Pump Single and Dual Head Models have an industry leading performance to size ratio and can be configured to meet the most stringent flow, reliability, efficiency, size, and noise requirements.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TS008-12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Width	1.18 inch	Operating Temperature	5 to 50 °C
Length	3.05 inch	Industry Application	Gas Analysis
Motor Type	Iron Core Brush DC	Maximum Continuous Pressure	12 psi
Operating Pressure	12 psi	Diaphragm Material	EPDM
Vacuum Pressure Rating	-406 mm-Hg	Body Material	Vectra A130 LCP
Weight	206 g	Operational Life	3000 Hours
Division	Precision Fluidics Division	Height	1.94 inch
For Fluid Type	Air	Product Type	Diaphragm Pump
Flow Rate	5.8 L/min	Noise Level	45 dBA
Maximum Continuous Vacuum Pressure	-7.9 psi	Motor Option	Iron Core Brush DC
Operational Life	3,000 Hours	Pump Size	Single Head
Free Flow Rate	Up to 5.8 L/min	Pump Type	Vaccum Only (High Flow)
