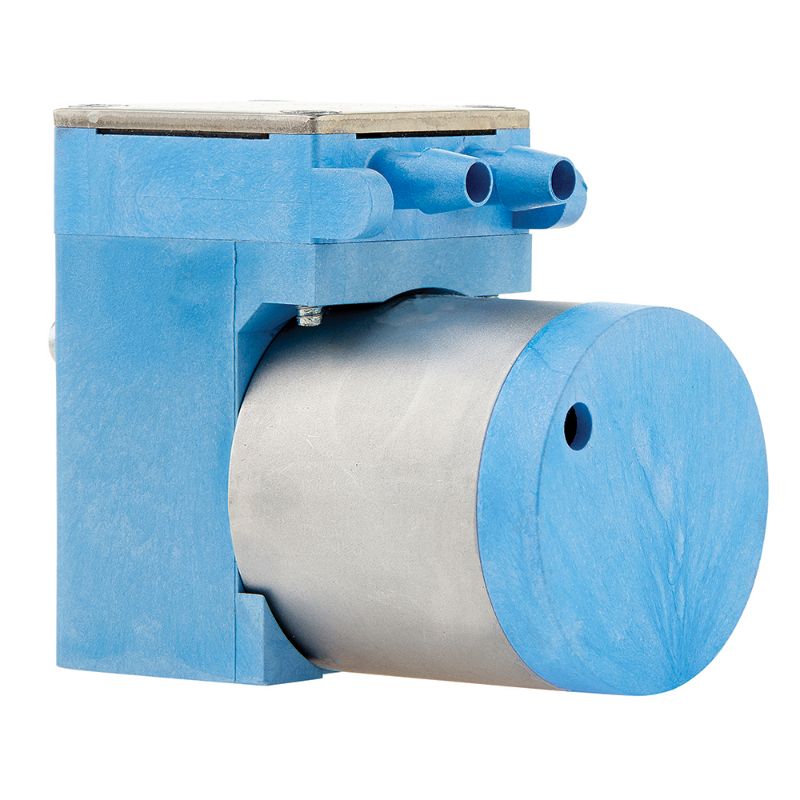

Parker TS001-13 - TTC Miniature Diaphragm Pump

Parker's TTC Miniature Diaphragm Pump Single and Dual Head Models have an industry leading performance to size ratio and can be configured to meet the most stringent flow, reliability, efficiency, size, and noise requirements.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. TS001-13

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Width	1.3 inch	Length	54.9 mm
For Fluid Type	Air	Product Type	Diaphragm Pump
Noise Level	45 dBA	Maximum Continuous Vacuum Pressure	-406 mm-Hg
Motor Type	Compact Brushless DC	Operating Temperature	5 to 50 °C
Operational Life	10000 Hours	Industry Application	Gas Analysis
Maximum Continuous Pressure	0.8 bar	Operating Pressure	12 psi
Height	49.2 mm	Weight	142 g
Diaphragm Material	EPDM	Vacuum Pressure Rating	-406 mm-Hg
Body Material	Vectra A130 LCP	Flow Rate	6.1 L/min
Division	Precision Fluidics Division	Pump Type	Pressure Only (High Flow)
Pump Size	Single Head	Operational Life	10,000 Hours
Free Flow Rate	Up to 6.0 L/min	Motor Option	Compact Brushless DC
